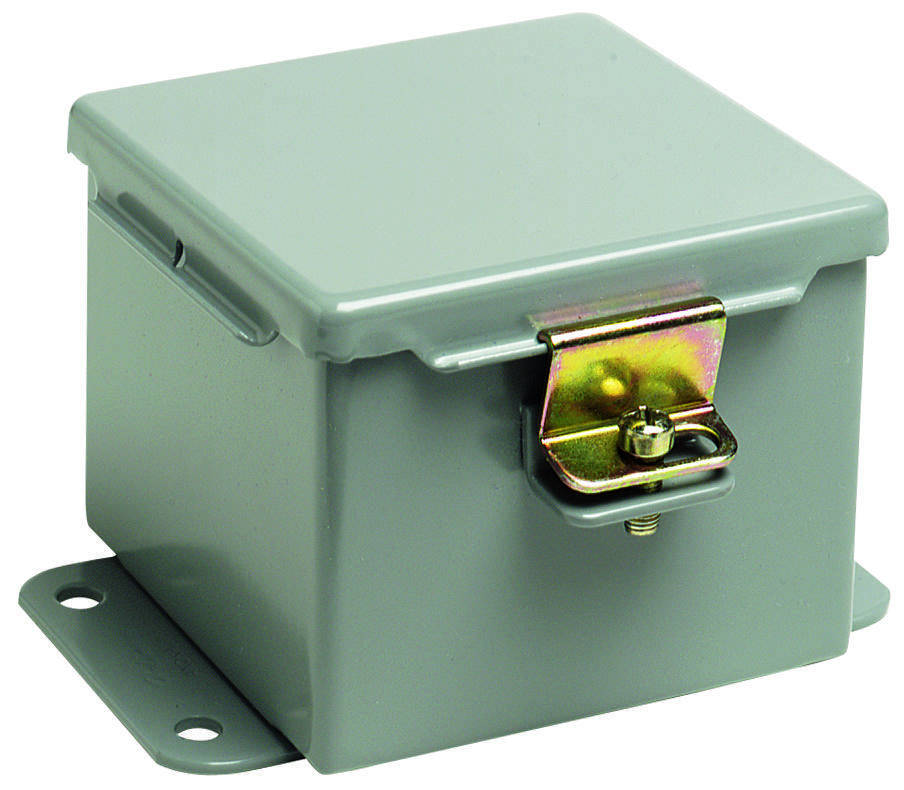

NVENT HOFFMAN A1614CH Hinge Cover Junction Box
The A1614CH is a durable, continuous hinge junction box made of 14-gauge steel with a gray polyester powder coating. It features a ground-smooth welded seam construction, screw-down clamps for secure closures, and external steel mounting brackets for easy installation. The box includes weldnuts for mounting optional panels and terminals of 6x4 inches or larger. Its continuous hinge and bonding provisions on the door ensure safety and reliability, while an oil-resistant gasket provides sealing against environmental elements. Ideal for industrial applications, it combines strength, corrosion resistance, and versatile mounting options for control, electrical, and automation projects.
NVENT HOFFMAN A1614CH Hinge Cover Junction Box Specifications:
- Material: 14-gauge steel
- Finish: ANSI 61 gray polyester powder paint
- Seams: Welded and ground smooth
- Hinge: Continuous hinge with clamp mechanism
- Clamps: Screw-down door clamps
- Bonding: Provision on door for grounding
- Mounting: External welded-on brackets
- Gasket: Oil-resistant
- Weldnuts: Included for mounting panels and terminal blocks
- Panel Size Compatibility: 6.00 x 4.00 inches and larger
- Certifications: UL 50, 50E Listed; CSA 22.2 No. 94; cUL Listed; NEMA Type 12 and 13
- Dimensions: Constructed for fit and accessibility in industrial environments
Buy the Pentair Series Continuous Hinge Junction Box: A1614CH
Secure your electrical and control installations with the Pentair Series Hinge Cover Junction Box. Crafted from 14-gauge steel with a durable gray polyester powder coat, it features a continuous hinge, screw-down clamps, and external brackets for quick installation. The box includes weldnuts for mounting panels and terminal blocks of 6x4 inches or larger. Its welded seams are ground smooth for a professional finish. An oil-resistant gasket ensures environmental sealing, making it ideal for industrial control systems needing robust, corrosion-resistant enclosures. Conveniently order online for fast delivery and dependable quality.
Order your Pentair Series A1614CH durable steel junction box today and ensure reliable performance in your control and electrical projects.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN A1614CH?
You can click on the BUY or RFQ button to purchase A1614CH from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part A1614CH?
You can download the A1614CH datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of A1614CH?
NVENT HOFFMAN
