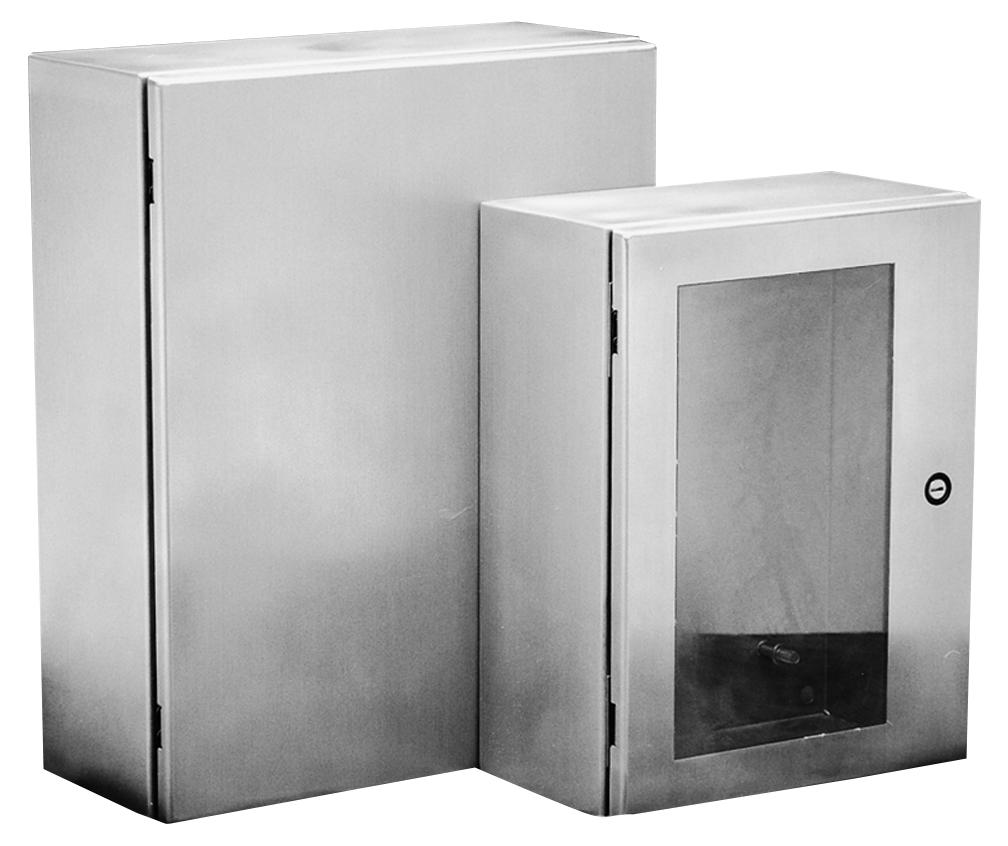

NVENT HOFFMAN CSD16126SS Stainless Steel Enclosure
The CSD16126SS is a concept Type-4X wall-mount enclosure constructed from stainless steel with a smooth #4 brushed finish on both the door and body. Designed for indoor or outdoor use, it offers excellent corrosion resistance against chemicals and water. The enclosure features streamlined styling with an attractive stroked finish, flush quarter-turn latches for secure closure, and a minimal-width body flange for maximum opening access. It includes an external formed 90° flange, panel mounting studs compatible with optional concept panels and accessories, and mounting holes on the back for direct or external bracket mounting. The enclosure is equipped with concealed Type 316 stainless steel hinges for aesthetic appeal, interchangeable corner-formed doors that can be easily removed by pulling clip-style hinge pins, and provisions on the door for thermoplastic data pockets and optional doorstop kits (except on window-door styles when B = 12 inches). The secure quarter-turn latches feature flush slotted inserts, and the enclosure includes a seamless foam-in-place gasket, a self-grounding latch system with double seal, and grounding provisions via a door grounding stud on the body. Door options include clear polycarbonate windows (except on certain styles). Suitable for industrial applications, this enclosure provides robust protection for electronic components and equipment.
NVENT HOFFMAN CSD16126SS Stainless Steel Enclosure Specifications:
- Material: 16 or 14 gauge Type 304 or 316L stainless steel
- Finish: #4 brushed smooth finish on door and body
- Construction: Seamless welded, ground smooth
- Seals: Foam-in-place gasket, double seal for oiltight and dusttight protection
- Hinges: Concealed Type 316 stainless steel hinges
- Latch system: Quarter-turn latch with flush slotted insert, optional 3-point latch on larger enclosures
- Mounting: Back mounting holes or external brackets
- Dimensions: Ranges from 12x12x6 inches to 36x30x10 inches (varies by model)
- Certifications: NEMA Type 4X, UL 508A, CSA, VDE IP66, Type 3R, 4, 12, 13
- Accessories: Data pockets, mounting brackets, panels, thermal accessories, door stop kits
- Seamless gasket: Foam-in-place for seal integrity
- Grounding: Built-in grounding provisions with grounding stud
- Window options: Polycarbonate window on select models
- Application: Suitable for indoor and outdoor electrical or electronic equipment protection
Buy the Buy Hoffman Stainless Steel Type 4X Enclosure Part Number CSD16126SS Online
Purchase the Hoffman stainless steel enclosure online today to ensure your electrical equipment is protected against corrosion, dust, and water. With a durable Type 4X rating, seamless gasket, secure quarter-turn latches, and versatile mounting options, this enclosure is ideal for harsh industrial environments. Its attractive brushed finish and concealed hinges provide a sleek appearance. Easily customizable with options for windows, data pockets, and thermal accessories, it guarantees robust protection for sensitive electronics, offering long-term reliability and ease of installation for indoor and outdoor applications.
Buy Hoffman CSD16126SS now and experience unmatched reliability and corrosion-resistant protection for your industrial electronic equipment.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN CSD16126SS?
You can click on the BUY or RFQ button to purchase CSD16126SS from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part CSD16126SS?
You can download the CSD16126SS datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of CSD16126SS?
NVENT HOFFMAN
