NVENT HOFFMAN DAH2001A Datasheet & Stock

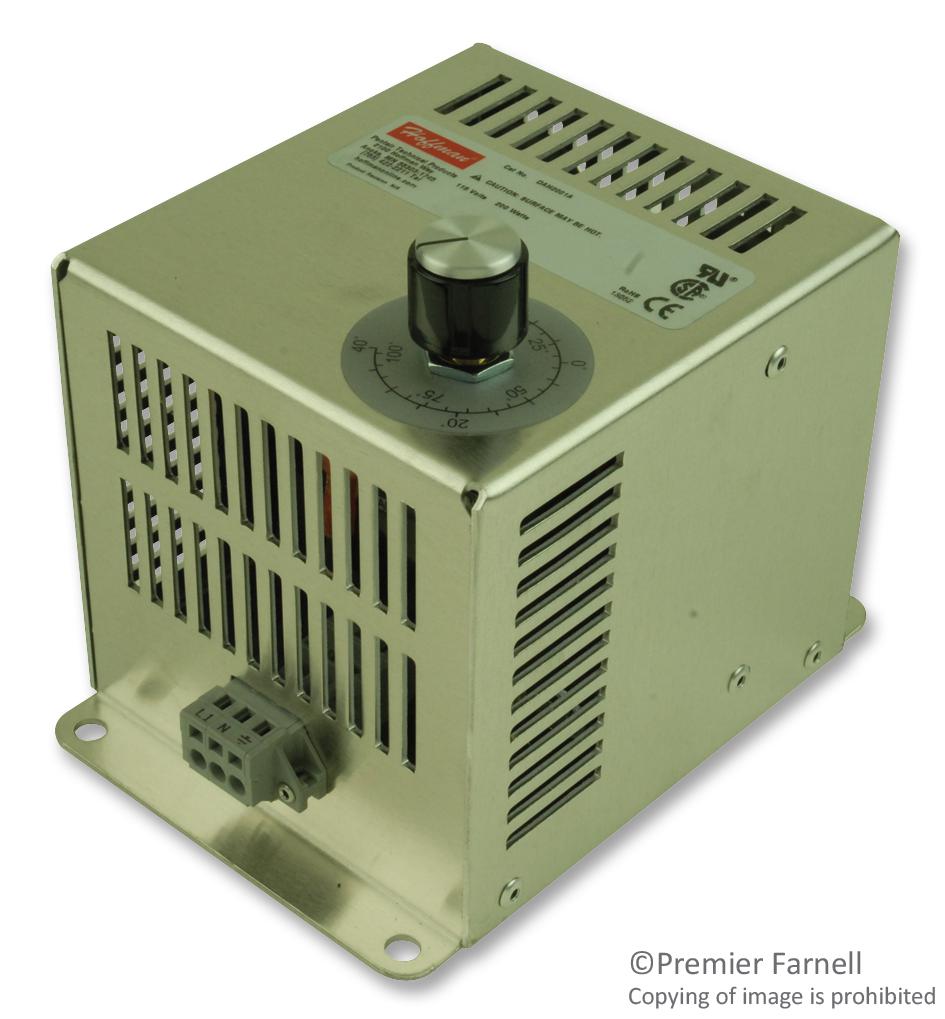

The DAH2001A is a 200W Electric Heater that protects mechanical, electrical and electronic equipment from low temperatures, condensation and corrosion. The thermostatically controlled, fan-driven heater maintains a stable enclosure temperature. Fan draws cool air from the bottom of the enclosure and passes this air across the thermostat and heating element before being released into enclosure cavity. Heated air is discharged through the top of the heater unit.




Aluminum housing

50/60Hz frequency

1.89A nominal current

0 to 100°F (-18 to 38°C) adjustable thermostat range

Ball bearing fan

Terminal strip with clamp connector that accepts both solid and stranded wire

Brushed aluminum finish





Applications


Communications & Networking,

Industrial






Contents

Heater, Four 10-32 x self-tapping screws.



Warnings
Not designed for use in dusty, dirty, corrosive or hazardous locations. Adequate protection must be taken to protect people from potential burns. Do Not Install Heaters on Wood Panels.
