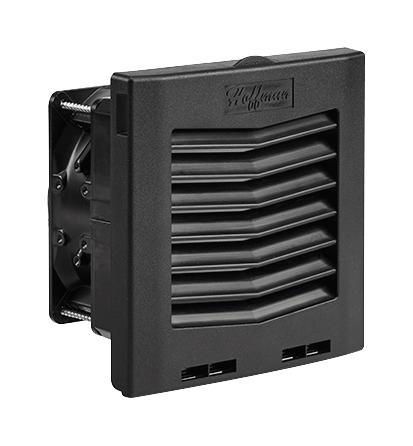

NVENT HOFFMAN HF0516413 Side Mount Filter Fan
The HF0516413 is a 35 CFM (59 m³/hr) side-mount filter fan from Hoffman Enclosures, designed for industrial applications. It features a click-fit design that allows for quick installation into enclosure walls without tools or screws. The fan opens easily with a flick of a finger for convenient filter replacement and offers enclosure side wall mounting with a reverse airflow option on HF13 models to push or pull air through higher static pressure environments. The standard rope gasket ensures a proper seal to the enclosure, and the fan's cut-out size is similar to other manufacturer models. It includes terminal block connections and an optional thermostat for energy savings and extended service life. The hinged grille remains attached after opening. The fan complies with Type 12, IP54 standards, operates at 115V with a frequency of 50/60Hz, drawing 0.16/0.14A and consuming 11/10W. It features UV-resistant black plastic (RAL 9011), is UL and cUL listed (E482010), certified CE and EAC, with a dimension of 6.15 x 6.16 x 3.98 inches and weight of 1.77 lbs. Operating temperature range is from -10°C to 55°C. Airflow varies with grille configuration, with 35 CFM free airflow, 23 CFM with one exhaust grille, and 28 CFM with two exhaust grilles. Suitable for industrial automation, automotive assembly, packaging equipment, food & beverage processing, and wind energy systems.
NVENT HOFFMAN HF0516413 Side Mount Filter Fan Specifications:
- Airflow: 35 CFM free; 23 CFM with one exhaust grille; 28 CFM with two exhaust grilles
- Rated Voltage: 115 V
- Frequency: 50/60 Hz
- Nominal Current: 0.14 A
- Power Consumption: 11 W
- Motor Speed: 3250 RPM
- Enclosure Standards: Type 12, IP54
- Operating Temperature Range: -10°C to 55°C
- Dimensions (HxWxD): 6.15 x 6.16 x 3.98 inches
- Weight: 1.77 lbs (0.8 kg)
- Construction: UV-resistant black plastic (RAL 9011)
- Certifications: UL, cUL, CE, EAC Listed
- Additional Features: Quick click-fit installation, hinged grille, terminal block connections, optional thermostat for energy efficiency
Buy the Buy Hoffman Enclosures Fan Part Number HF0516413 Online
Order the Hoffman Side Mount Filter Fan HF0516413 online today to improve your enclosure cooling efficiency. Featuring quick install design, reversible airflow options, and UL/cUL certification, this fan ensures durability and energy savings. Its UV-resistant black plastic construction and operating temperature range from -10°C to 55°C make it suitable for harsh environments. Simple terminal connections and a hinged grille for easy maintenance add to its convenience. Protect your industrial automation, automotive, and wind energy systems with this reliable, high-performance filter fan. Purchase online now for fast delivery and peace of mind.
Buy Hoffman Enclosures HF0516413 now and ensure reliable thermal management with easy installation and optional energy-saving thermostat.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN HF0516413?
You can click on the BUY or RFQ button to purchase HF0516413 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part HF0516413?
You can download the HF0516413 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of HF0516413?
NVENT HOFFMAN
