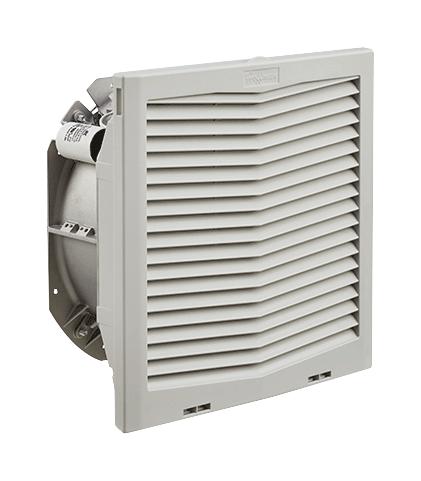

NVENT HOFFMAN HF1326414 Side-Mount Filter Fan
The HF1326414 from Hoffman Enclosures is a side-mount filter fan with a maximum airflow of 395 CFM (671 m³/hr). It features a click-fit design for tool-free installation and easy filter replacement, with a reverse airflow option on HF13 models for push/pull air movement through higher static pressure. Made of UV-resistant light gray plastic, it offers a proper seal with a rope gasket, terminal block connections, and optional thermostat for energy efficiency. Certified UL, cUL, CE, and EAC, it operates between -10°C and 55°C, measuring 12.8 x 12.82 x 6.30 inches, weighing 4.25 pounds, suitable for industrial automation and enclosure cooling.
NVENT HOFFMAN HF1326414 Side-Mount Filter Fan Specifications:
- Maximum airflow: 395 CFM (671 m³/hr)
- Mounting: Side wall, enclosure compatible
- Installation: Click-fit design, no tools required
- Material: UV-resistant light gray plastic (RAL 7035)
- Standards: Type 12, IP54
- Rated Voltage: 230V, 50/60Hz
- Rated Current: 0.34/0.37A
- Power Consumption: 74/80W
- Temperature Range: -10°C to 55°C
- Dimensions: 12.8 x 12.82 x 6.30 inches
- Weight: 4.25 pounds
- Airflow with 1 grille: 281 CFM (477 m³/hr)
- Airflow with 2 grilles: 366 CFM (621 m³/hr)
- Certification: UL (E482010), cUL, CE, EAC
Buy the Buy Hoffman Enclosures Filter Fan Part Number HF1326414 Online
Purchase the Hoffman Series HF1326414 side-mount filter fan online and ensure efficient enclosure thermal management. With a powerful airflow of 395 CFM, tool-free click-fit installation, and a reverse airflow option for higher static pressure environments, this fan is ideal for industrial automation, electronic enclosures, and equipment protection. Made from UV-resistant plastic, it guarantees durability and optimal sealing with a rope gasket. Certified UL, cUL, CE, and EAC, operating from -10°C to 55°C, and compact dimensions of 12.8 x 12.82 x 6.30 inches, it provides dependable cooling performance.
Order your Hoffman Series HF1326414 side-mount filter fan today and enhance your enclosure cooling with reliable airflow and easy maintenance.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN HF1326414?
You can click on the BUY or RFQ button to purchase HF1326414 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part HF1326414?
You can download the HF1326414 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of HF1326414?
NVENT HOFFMAN
