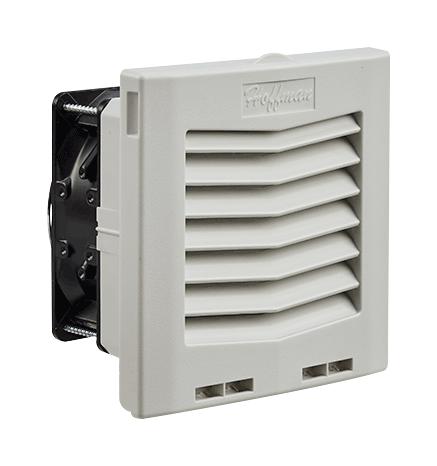

NVENT HOFFMAN HF0526414 industrial side-mount filter fan
The Hoffman Enclosures HF0526414 is a side-mount filter fan designed for industrial applications. It offers a maximum airflow of 35 CFM (59 m³/hr) and features a click-fit design for quick, tool-free installation into enclosure walls. The fan opens with a simple flick for easy filter replacement and includes a standard rope gasket to ensure a proper seal. It supports enclosure side wall mounting and has a reversible airflow option on HF13 models for increased flexibility, allowing both push and pull airflow through higher static pressure areas. The fan is equipped with terminal block connections and offers an optional thermostat to conserve energy and extend lifespan. Its hinged grille remains attached after opening for convenience.
NVENT HOFFMAN HF0526414 industrial side-mount filter fan Specifications:
- Fan RPM: 2600/2900
- Sound Pressure: 40/46 dBA at 50/60 Hz
- Maximum Power Consumption: 11.0/10.0 Watts
- Rated Voltage: 115/230 V
- Frequency: 50/60 Hz
- Maximum Nominal Current: 7/14 Amps
- Unit Dimensions: 7.28 x 12.82 x 6.30 inches
- Cutout Dimensions: 7.00 x 6.97 inches
- Weight: 2.13 lbs
- Material: UV-resistant plastic, RAL 7035 Light Gray
- Service Life: 40,000 hours
- Operating Temperature Range: -20°C (-4°F) to 55°C (131°F)
- Installation: Side-wall mount, tool-free setup
- Reversible airflow: Supported on HF13 models
- Connectivity: Terminal block connections
- Additional: Hinged grille remains attached after opening
- Standards: UL/cUL listed, IP54 support
Buy the Buy Hoffman HF0526414 Part Number HF0526414 Online
Get your Hoffman HF0526414 side-mount filter fan online today. This industrial fan provides 35 CFM airflow, features tool-free quick installation, reversible airflow on HF13 models, and supports IP54 standards. It includes a convenient hinged grille for easy filter replacement, a standard rope gasket ensuring a proper seal, and terminal connections for secure setup. Engineered for long service life, it operates efficiently from -20°C to 55°C, making it perfect for industrial environments requiring reliable thermal management. Order now for fast delivery and improved equipment protection.
Order your Hoffman industrial side-mount filter fan HF0526414 today and enhance your enclosure cooling with reliable airflow and easy installation.
