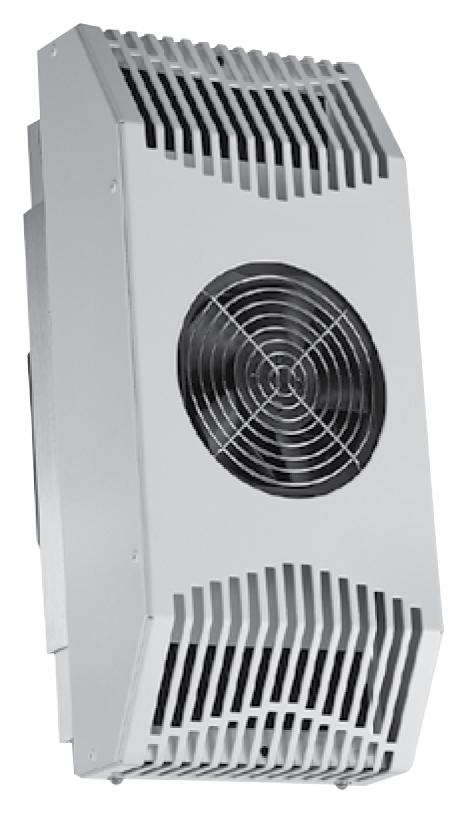

NVENT HOFFMAN TE121024010 Thermoelectric Cooler
The TE121024010 is a sealed thermoelectric enclosure cooler equipped with a painted shroud. Utilizing the Peltier effect, this compact and low-profile cooler effectively removes heat from critical components within small indoor and outdoor enclosures. Its design eliminates the need for condensers, compressors, or filters, making it a reliable, low-maintenance solution suitable for demanding environments. The cooler operates on 24V DC power, is filterless, environmentally friendly (no refrigerant), and features a simple, prewired terminal block for easy installation. Its versatile design allows for vertical or horizontal mounting, ensuring compatibility with various enclosure configurations. The operating temperature range extends from -40°C to +55°C, making it suitable for diverse industrial applications.
NVENT HOFFMAN TE121024010 Thermoelectric Cooler Specifications:
- Power: 24 V DC, 52 Watts
- Cooling Capacity: 178 BTU/Hr
- Operating Temperature Range: -40°C to +55°C
- Dimensions (HxWxD): 9.06 x 5.02 x 6.91 inches
- Weight: 6 lbs
- Output BTU/Hr: 178
- Internal Loop Airflow: 24 CFM
- External Loop Airflow: 80/136 CFM
- Finish: Powder coat paint RAL 7036 light gray
- UL Recognized, IP 65 rated
- Material: Anodized aluminum heat sink, painted steel shroud
- Mounting: Vertical and horizontal mounting options
Buy the Pentair Series Thermoelectric Cooler: TE121024010
Order the Pentair TE121024010 thermoelectric cooler online today for efficient, maintenance-free heat management. Its compact design, operating from -40°C to +55°C, makes it perfect for small enclosures. Equipped with environmentally friendly no refrigerant technology, it is easy to install with a prewired terminal block suitable for vertical or horizontal mounting. With 178 BTU/Hr of cooling capacity and durable powder-coated finish, this cooler ensures reliable operation in harsh conditions. Purchase online now for fast delivery and trusted performance.
Get Pentair TE121024010 today—built for reliable heat removal in demanding indoor and outdoor environments.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN TE121024010?
You can click on the BUY or RFQ button to purchase TE121024010 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part TE121024010?
You can download the TE121024010 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of TE121024010?
NVENT HOFFMAN
