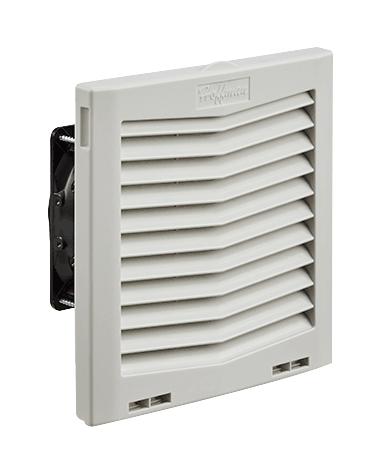

NVENT HOFFMAN HF0926414 Side-Mount Filter Fan
The HF0926414 from Hoffman Enclosures is a 70 CFM (119 m³/hr) side-mount filter fan designed for industrial enclosures. It features a click-fit installation system that allows quick, tool-free mounting into the enclosure wall. The fan is easily accessible for filter replacement, with a flip-open design and hinged grille that remains attached after opening. It offers adjustable airflow options, including a reverse airflow feature on HF13 models to facilitate push-pull configurations for higher static pressure environments. The standard rope gasket ensures a proper seal to the enclosure, providing effective filtration. Key features include a Type 12, IP54 standard rating, rated voltage of 230V at 50/60Hz, power consumption of approximately 15W, and a light gray UV-resistant plastic housing (RAL 7035). The fan's airflow varies based on exhaust grille configuration: 70 CFM with no grille, 44 CFM with one grille, and 55 CFM with two. It operates within a temperature range of -10°C to 55°C and complies with UL file E482010, cUL, CE, and EAC certifications. Dimensions are 8.19 by 8.21 by 4.15 inches, weighing 2.13 pounds. It is suitable for use in industrial automation, automotive assembly, packaging equipment, food and beverage processing, and wind energy systems.
NVENT HOFFMAN HF0926414 Side-Mount Filter Fan Specifications:
- Rated Voltage: 230V at 50/60Hz
- Power Consumption: approximately 15W
- Airflow: 70 CFM without grille, 44 CFM with one grille, 55 CFM with two
- Maximum Temperature: 55°C
- Minimum Temperature: -10°C
- Dimensions: 8.19 x 8.21 x 4.15 inches
- Weight: 2.13 pounds
- Construction: UV-resistant plastic (RAL 7035)
- Certification: UL, cUL, CE, EAC
- Rating: Type 12, IP54
- Operation: Suitable for industrial automation, automotive, packaging, food processing, wind systems
Buy the Buy Hoffman Enclosures HFO9 Part Number HF0926414 Online
Purchase the Hoffman Enclosures side-mount filter fan today to ensure efficient thermal management in your industrial enclosures. With quick tool-free installation, adjustable airflow, and sealed protection, it guarantees reliable operation in temperature ranges from -10°C to 55°C. Its robust UV-resistant plastic housing ensures durability, and certifications like UL, cUL, CE, and EAC confirm safety compliance. Ideal for industrial automation, automotive systems, packaging, and wind energy applications, this fan enhances your system’s thermal performance effectively and effortlessly.
Get Hoffman Enclosures HFO9 HF0926414 today—built for industrial reliability and long-lasting performance.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN HF0926414?
You can click on the BUY or RFQ button to purchase HF0926414 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part HF0926414?
You can download the HF0926414 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of HF0926414?
NVENT HOFFMAN
