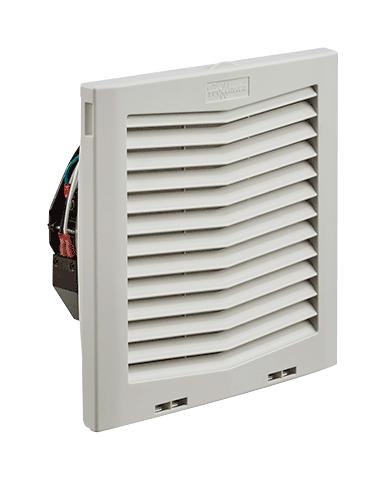

NVENT HOFFMAN HF1016514 filter fan
The Hoffman Enclosures HF1016514 is a side-mount filter fan with a airflow rating of 159 CFM (270 m³/hr). It features a quick-click fit design for easy installation into enclosure walls without the need for tools or screws. The fan opens with a simple flick for effortless filter replacement and can be mounted on the side wall of an enclosure. It offers a reverse airflow option on HF13 models to facilitate push/pull air operation through higher static pressure. The standard rope gasket ensures an effective seal to the enclosure. Compatible with similar cut-out sizes used by other manufacturers, it includes terminal block connections and an optional thermostat to help save energy and prolong service life. The hinged grille stays attached after opening. This model is suitable for use in industrial automation, automotive assembly, packaging equipment, food and beverage processing, and wind energy systems. It complies with Type 12, IP55 standards, and features a rated voltage of 115V at 50/60Hz, with a nominal current of 0.38/0.36A and power consumption of 35/32W. Made from UV-resistant plastic in RAL 7035 light gray, it has a free airflow of 103 CFM (175 m³/hr), and airflow with one exhaust grille is 80 CFM (136 m³/hr), while with two grilles it's 87 CFM (148 m³/hr). The operating temperature range is from -20°C to 65°C. It is UL listed (E482010/cUL), CE, and EAC certified. Dimensions are 10.13 inches by 10.14 inches by 4.68 inches, with a weight of 3.14 pounds.
NVENT HOFFMAN HF1016514 filter fan Specifications:
- Rated Voltage: 115V at 50/60Hz
- Nominal Current: 0.38/0.36A
- Power Consumption: 35/32W
- Airflow (free): 159 CFM (270 m³/hr.)
- Airflow with 1 Exhaust Grille: 80 CFM (136 m³/hr.)
- Airflow with 2 Exhaust Grilles: 87 CFM (148 m³/hr.)
- Fan RPM: 2100
- Dimensions: 10.13 inches x 10.14 inches x 4.68 inches
- Weight: 3.14 pounds
- Material: UV-resistant plastic in RAL 7035 light gray
- Operating Temperature Range: -20°C to 65°C
- Standards: UL listed, CE, EAC
- Constructed for Type 12, IP55 environment
- Includes terminal block connections and optional thermostat
- Compatibility with similar cut-out sizes used by other manufacturers
- Hinged grille remains attached after opening
Buy the Pentair Series HF13 Side-Mount Filter: HF1016514
Enhance your enclosure cooling efficiency with the Pentair HF1016514 side-mount filter fan. Designed for easy installation and maintenance, it offers reliable airflow of 159 CFM, a reverse airflow option, and energy-saving features with an optional thermostat. Constructed from UV-resistant plastic in light gray, it meets industry standards including UL, CE, and EAC certifications. Ideal for industrial automation, automotive, and wind energy systems, this quiet yet robust fan ensures optimal thermal management in demanding environments. Easy ordering online for quick setup.
Buy Pentair HF1016514 filter fan now and experience unmatched reliability and performance for industrial automation and enclosure cooling needs.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN HF1016514?
You can click on the BUY or RFQ button to purchase HF1016514 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part HF1016514?
You can download the HF1016514 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of HF1016514?
NVENT HOFFMAN
