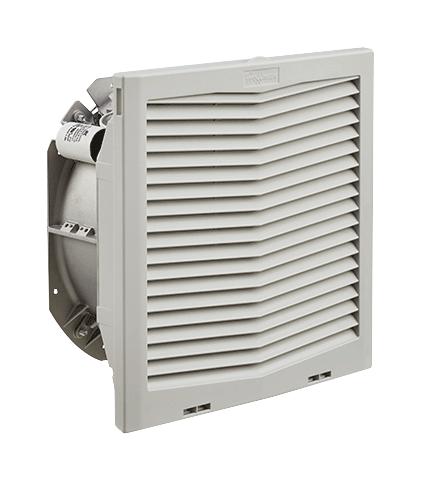

NVENT HOFFMAN HF1316414R Side Mount Filter Fan
The HF1316414R from Hoffmann Enclosures is a side-mount filter fan with a capacity of 395 CFM (671 m³/hr). It features a click-fit design for quick installation into enclosure walls without the need for tools or screws. The fan opens easily for filter replacement and offers an optional reverse airflow mode on HF13 models to facilitate pushing or pulling air through higher static pressure conditions. It includes a standard rope gasket to ensure a proper seal and is compatible with similar-sized cutouts used by other filter fan manufacturers. The unit has terminal block connections and an optional thermostat for energy savings and extended service life. The hinged grille remains attached after opening. It is suitable for use in industrial automation, automotive assembly, packaging equipment, food and beverage processing, and wind energy applications.
NVENT HOFFMAN HF1316414R Side Mount Filter Fan Specifications:
- Capacity: 395 CFM (671 m³/hr.)
- Voltage: 115/230 V
- Frequency: 50/60 Hz
- Nominal Current: 7.0/8.8 Amps
- Power Consumption: 65/72 Watts
- Fan RPM: 2100
- Sound Pressure: 34/36 dBA
- Maximum Operating Temperature: 131°F (55°C)
- Service Life: 51,000 hours
- Dimensions: 12.8 x 12.8 x 3.65 inches (325 x 326 x 93 mm)
- Cutout Dimensions: 3.62 x 3.62 inches (92 x 92 mm)
- Weight: 7 lb (3.2 kg)
- Construction: UV-resistant plastic, Type 12/IP54 standard
- Includes terminal block connections and optional thermostat
- Reverse airflow option available for HF13 models
- Compatible with similar cutouts from other manufacturers
- Sealed with rope gasket to ensure proper enclosure seal
Buy the Hoffmann Series HF1316414R Airflow Filter Fan: 395 CFM
Order the Hoffmann Series HF1316414R side-mount filter fan online today and improve your enclosure's thermal management. With 395 CFM airflow, easy installation, optional reverse airflow, and sealed design, this fan is ideal for industrial automation, automotive, and wind energy projects. Its durable construction and quiet operation ensure long service life, while the quick-release grille simplifies filter replacement. Enhance your equipment's reliability and efficiency by purchasing this high-performance filter fan online now with confidence and quick delivery.
Buy Hoffmann Series HF1316414R filter fan now and enjoy reliable, easy-to-install airflow management for industrial automation and automotive applications.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN HF1316414R?
You can click on the BUY or RFQ button to purchase HF1316414R from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part HF1316414R?
You can download the HF1316414R datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of HF1316414R?
NVENT HOFFMAN
