NVENT HOFFMAN LHC302515 Datasheet & Stock

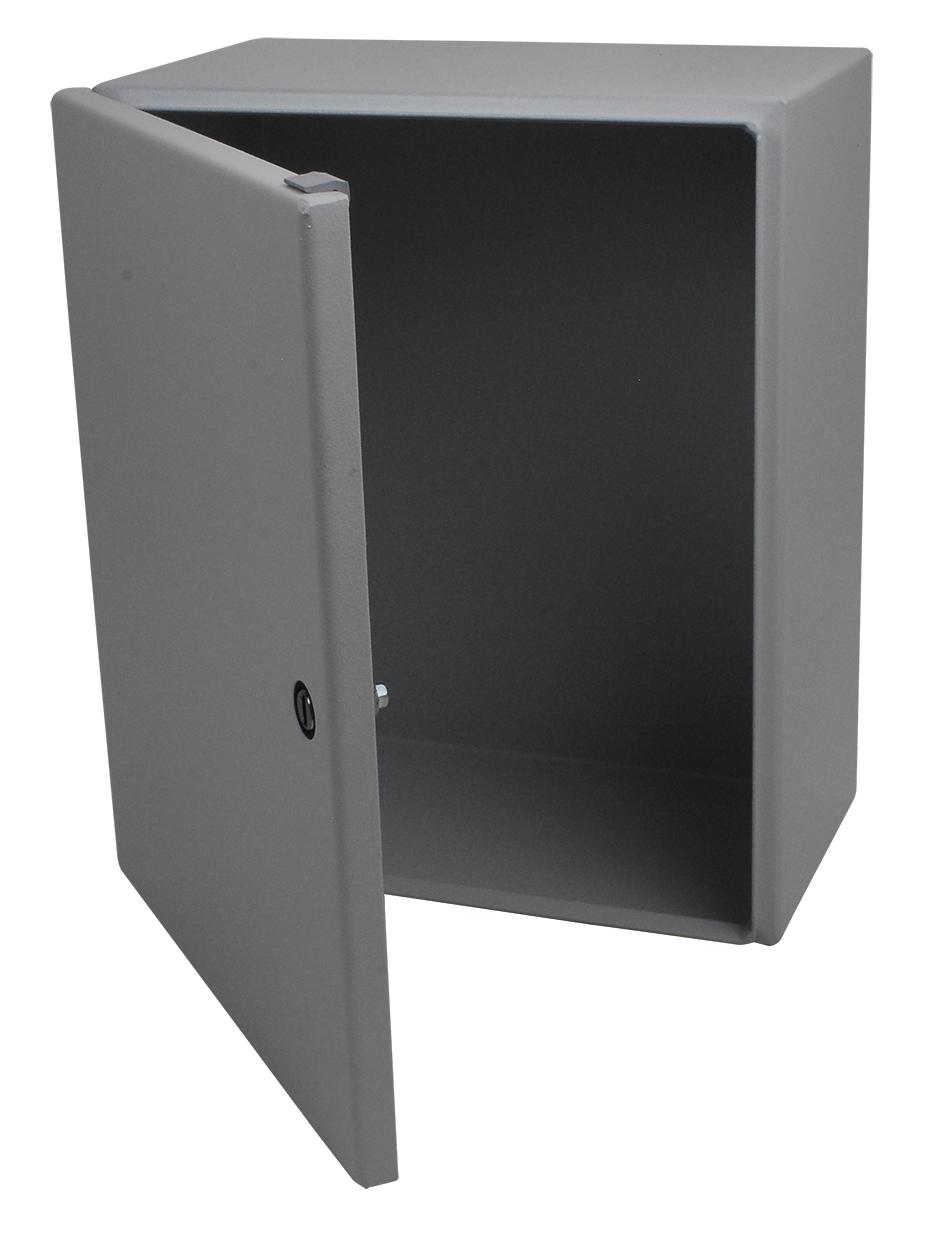

The LHC302515 is a light gray (RAL 7035) INLINE type-4 Hinged-Door Enclosure made of 16-gauge steel with polyester powder painted finish. Aesthetic styling, with an attractive, durable light-gray finish, makes INLINE enclosures an excellent choice when style and functionality are important. The model 61110 INLINE enclosures have an outward formed flange to prevent contaminants from entering the enclosure. Mounting holes in back of body for direct mounting or optional external mounting brackets.




Door opens 180°

Removable hinged door

Self-grounding, slotted quarter-turn latch

Seams continuously welded and ground smooth

External formed body flange channels away liquids

Large perimeter body opening

Seamless foam-in-place gasket

Grounding stud on the body

Bonding provision on the door





Applications


Industrial






Contents

Hinged-door enclosure, Hardware kit (panel mounting screws, grounding hardware and sealing washers for wall-mounting holes), Installation instructions.
