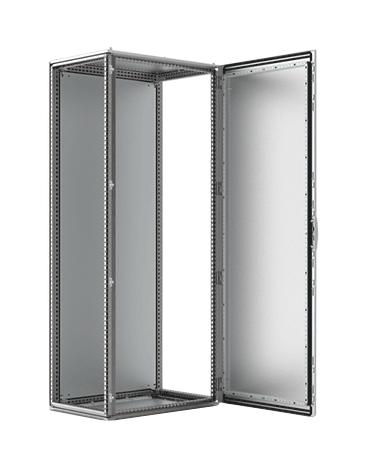

NVENT HOFFMAN MCSS18065 Stainless Steel Enclosure
The stainless steel single door combinable enclosure MCSS is IP55 rated, offering protection against water and dust ingress. Constructed with AIS 304L or 316L stainless steel, this enclosure features welded profiles, a four-point locking system, and a removable roof panel, suitable for diverse industrial environments. Its modular design allows for easy baying and installation, with a variety of sizes and optional side panels. The enclosure ensures excellent sealing, effective earthing, and is designed for durability and reliability in demanding conditions.
NVENT HOFFMAN MCSS18065 Stainless Steel Enclosure Specifications:
- Material: AIS 304L or 316L stainless steel with 1.5mm frame, 2mm door, 1.5mm panels, 3mm galvanized steel mounting plate
- Protection Class: IP55, TYPE 12, 13, IK 10
- Door: Mounted with four hinges, left or right opening, includes door frame with 25mm hole pattern
- Locking: Espagnolette 4-point lock, standard double-bit 3mm insert, various accessories available
- Finish: Pre-grained stainless steel
- Dimensions: Height options 2000mm or 7800mm, Width options 600mm to 800mm, Depth 494mm or 694mm
- Mounting: Rear panel fixed with M6 Torx screws, optional side panels, removable roof panel
- Earthing: All panels earthed via fittings, with separate earthing stud
- Delivery: Complete assembled enclosure, ready for baying or standalone installation, on recyclable pallet
Buy the Hoffman MCSS – Reliable Stainless Steel Enclosure for Industrial Applications
Purchase your Hoffman MCSS stainless steel enclosure online today to secure a high-quality, durable solution for industrial applications. This IP55 rated enclosure features corrosion-resistant AIS 304L or 316L stainless steel, ensuring long-lasting performance in demanding environments. Its modular design enables easy baying and customization with optional side panels and accessories. Equipped with a reliable four-point lock system and a removable roof panel, it provides excellent sealing, safety, and adaptability. Order now and enhance your project’s protection and reliability with minimal installation effort.
Order your Hoffman MCSS stainless steel single door enclosure today and ensure your industrial projects benefit from durable, IP55 protection and modular versatility.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN MCSS18065?
You can click on the BUY or RFQ button to purchase MCSS18065 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part MCSS18065?
You can download the MCSS18065 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of MCSS18065?
NVENT HOFFMAN
