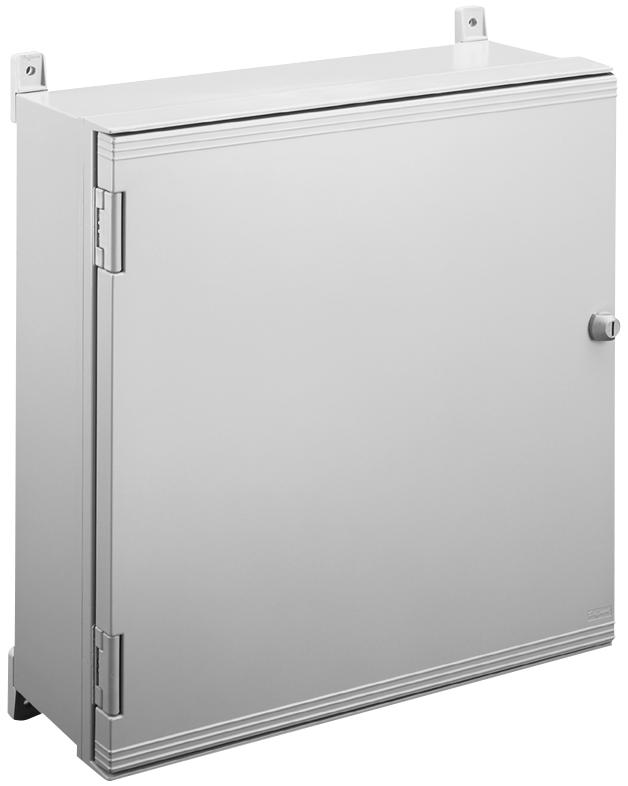

NVENT HOFFMAN UU504020 Fiberglass Enclosure
The UU504020 is an ULTRX™ Type-4X wall-mount solid-door enclosure featuring a light gray acrylic enamel exterior surface that provides enhanced UV protection. Designed for outstanding corrosion and weather resistance, it boasts a sleek, molded, embossed design that combines style with functionality. The enclosure includes hidden hinges with a 180° opening capability, adjustable mounting rails for flexible internal configuration, and a padlockable door for security. Its construction offers high impact resistance, excellent temperature and chemical resistance, and a seamless foam-in-place gasket ensuring a water-tight and dust-tight seal. Molded-in DIN bosses and door-mounted bosses provide versatile mounting options, and an optional high-impact thermoplastic data pocket adds convenience. Suitable for industrial applications.
NVENT HOFFMAN UU504020 Fiberglass Enclosure Specifications:
- Material: Compression-molded fiberglass with high-impact resistance and excellent chemical and temperature resistance
- Finish: Standard light-gray acrylic enamel with UV protection
- Hinges: Hidden, with 180° door opening, replaceable design, maximum opening 270°
- Sealing: Foam-in-place gasket assures water-tight and dust-tight seal
- Dimensions: Various sizes, typical panel height up to 1025mm, width up to 825mm, depth varies with model
- Mounting: Molded-in DIN bosses, door bosses, and integral adjustable mounting rails for flexible internal configuration
- Locks: Type 316 stainless steel quarter-turn latch, optional padlock or keylock handles
- Additional features: Molded drip shields, impact-resistant polycarbonate window, high-impact thermoplastic data pocket, halogen-free material
- Finish options: Painted or unpainted stainless steel, aluminum, conductive, and composite panels available
- Certifications: UL 508A, UL 94V-0 flammability, IEC 60529 IP66, NEMA Type 3R, 4X, 12, 13, CSA File No. 42186
Buy the PENTAIR UU504020 – Reliable Fiberglass Enclosure for Industrial Applications
Secure your industrial equipment with the PENTAIR fiberglass enclosure designed for maximum corrosion resistance and weatherproof performance. Featuring impact-resistant construction, adjustable mounting rails, and lockable doors, this ULTRX Type-4X enclosure offers both style and security. Perfect for harsh environments, it provides a seamless gasket for water and dust protection, plus versatile mounting options thanks to molded-in DIN bosses and door bosses. Invest now and ensure optimal safety and durability for your electrical and control systems in any industrial setting.
Buy PENTAIR UU504020 now and experience unmatched durability and secure protection for industrial environments.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN UU504020?
You can click on the BUY or RFQ button to purchase UU504020 from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part UU504020?
You can download the UU504020 datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of UU504020?
NVENT HOFFMAN
