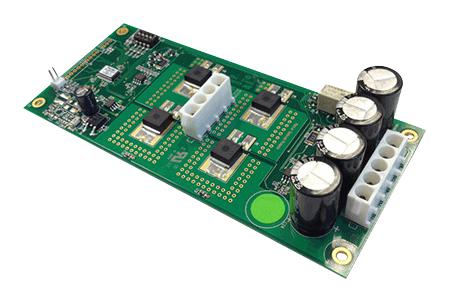

NVENT HOFFMAN TEC48VCNTLRN Thermoelectric Controller
The TEC48VCNTLRN is a thermoelectric temperature controller that uses PWM regulation to control cooling and heating outputs for TEC units. It automatically switches between cooling and heating modes, with an option to disable the heating function. The device features onboard LEDs indicating low temperature, high temperature alarm, and overall system status. It has a dry contact relay output for external alarm signaling. The controller provides four cooling and three heating set points, ideal for industrial applications and precise thermal management systems.
NVENT HOFFMAN TEC48VCNTLRN Thermoelectric Controller Specifications:
- Provides PWM regulation of cooling and heating output for TEC units
- Automatically switches between cooling and heating
- Cooling temperature set points from 22.5°C to 35°C, standard at 35°C
- Heating temperature set points from -5°C to 15°C, standard at 15°C
- Heating function can be disabled
- On-board LEDs for low temp, high temp alarm, system status
- Dry contact relay for external alarms
- Rated Voltage: 24V DC or 48V DC
- Operating Range: 20V to 30V at 24V, 20V to 60V at 48V
- Maximum current: 17.2A at 24V, 86A at 48V
- Dimensions: Height 0.75 inches (720730 mm), Width 2.89 inches (73.1773 mm), Length 6.51 inches (165.07185 mm)
- Weight: 0.21 lb (0.10 kg)
- UL, cUL recognized; industry standards compliance
Buy the Buy Pentair TEC48VCNTLRN Part Number TEC48VCNTLRN Online
Purchase the Pentair TEC48VCNTLRN thermoelectric temperature controller online today. Designed for industrial applications, it offers PWM regulation for cooling and heating, LED indicators for system status, and adjustable temperature set points. Its compact size makes it easy to install in thermal management systems, ensuring precise control of TEC units. Integrated with dry contact alarms, the controller provides reliable operation for demanding environments. Order now to enhance your thermal management solutions with this industry-standard, easy-to-wire device that guarantees long-lasting performance.
Get Pentair TEC48VCNTLRN today—engineered for precise temperature control and reliable thermal management.
Frequently Asked Questions
Where can I buy NVENT HOFFMAN TEC48VCNTLRN?
You can click on the BUY or RFQ button to purchase TEC48VCNTLRN from an authorized NVENT HOFFMAN distributor.
How do I troubleshoot issues or seek technical support for part TEC48VCNTLRN?
You can download the TEC48VCNTLRN datasheet or visit the NVENT HOFFMAN website for support.
Who is the manufacturer of TEC48VCNTLRN?
NVENT HOFFMAN
