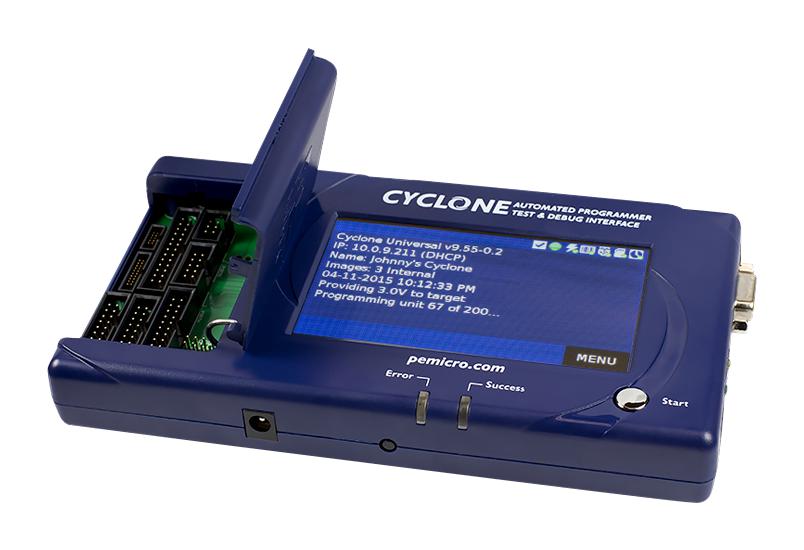

NXP ACPCYCLONE Industrial In-Circuit Programmer
The CYCLONE universal programmer offers versatile support for a wide range of ARM Cortex, ColdFire, and other microcontroller architectures, providing fast, reliable in-circuit programming. It features a 4.3" touchscreen LCD for easy navigation, multiple debug connector modes including JTAG and SWD, and onboard storage support for over 200 images. Built-in security with encryption and anti-tamper technology ensures data integrity, while Ethernet, USB, and serial interfaces facilitate seamless communication. Its adjustable target power management and real-time clock make it ideal for high-volume production environments, offering robust hardware and comprehensive control features.
NXP ACPCYCLONE Industrial In-Circuit Programmer Specifications:
- Supports ARM Cortex, ColdFire, S12, HCS08, RSO8, STM32, MAX716xx, nRF51/52, and other architectures
- Supports multiple debug connector modes including 6-Pin BDM/JTAG, 10-Pin JTAG/SWD, 14-Pin Power, 16-Pin MONO8, 20-Pin JTAG/SWD, 26-Pin ColdFire
- Touchscreen LCD display: 4.3 inch with configurable menu options
- Communication interfaces: 10/100BaseT Ethernet, USB 2.0 Full Speed, and serial port (115200 Baud, 8N1)
- Internal memory: 16MB supporting up to 8 images; external SDHC memory port for additional storage
- Power management: selectable schemes via relays, supports target voltages from 1.6V to 5.5V, and external power options
- Fast data transfer: Up to 25 Mb/s with high-speed target communication
- Security features include onboard encryption, anti-tamper technology, and internal memory protection
- Programmable serial number with automatic incrementing, stored in SAP images
- Supports remote control via DLL, command line utility, and network protocols for automation
- Real-time clock with date/time display, configurable time zone, and internet sync capability
Buy the P&E Micro Series CYCLONE Universal In-Circuit Programmer: ACPCYCLONE
Enhance your production efficiency with the P&E Micro Series CYCLONE Universal in-circuit programmer. Featuring full support for ARM Cortex and ColdFire microcontrollers, a 4.3" touchscreen, multiple communication interfaces, and onboard storage, it simplifies programming operations. Its flexible target power management, high-speed data transfer, and advanced security features ensure reliable, fast, and secure device programming in demanding industrial environments. Purchase online now for seamless integration into your manufacturing process and elevate your testing capabilities.
Buy P&E Micro Series CYCLONE Universal programmer now and experience unmatched reliability and performance for production testing and device programming.
Frequently Asked Questions
Where can I buy NXP ACPCYCLONE?
You can click on the BUY or RFQ button to purchase ACPCYCLONE from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part ACPCYCLONE?
You can download the ACPCYCLONE datasheet or visit the NXP website for support.
Who is the manufacturer of ACPCYCLONE?
NXP
