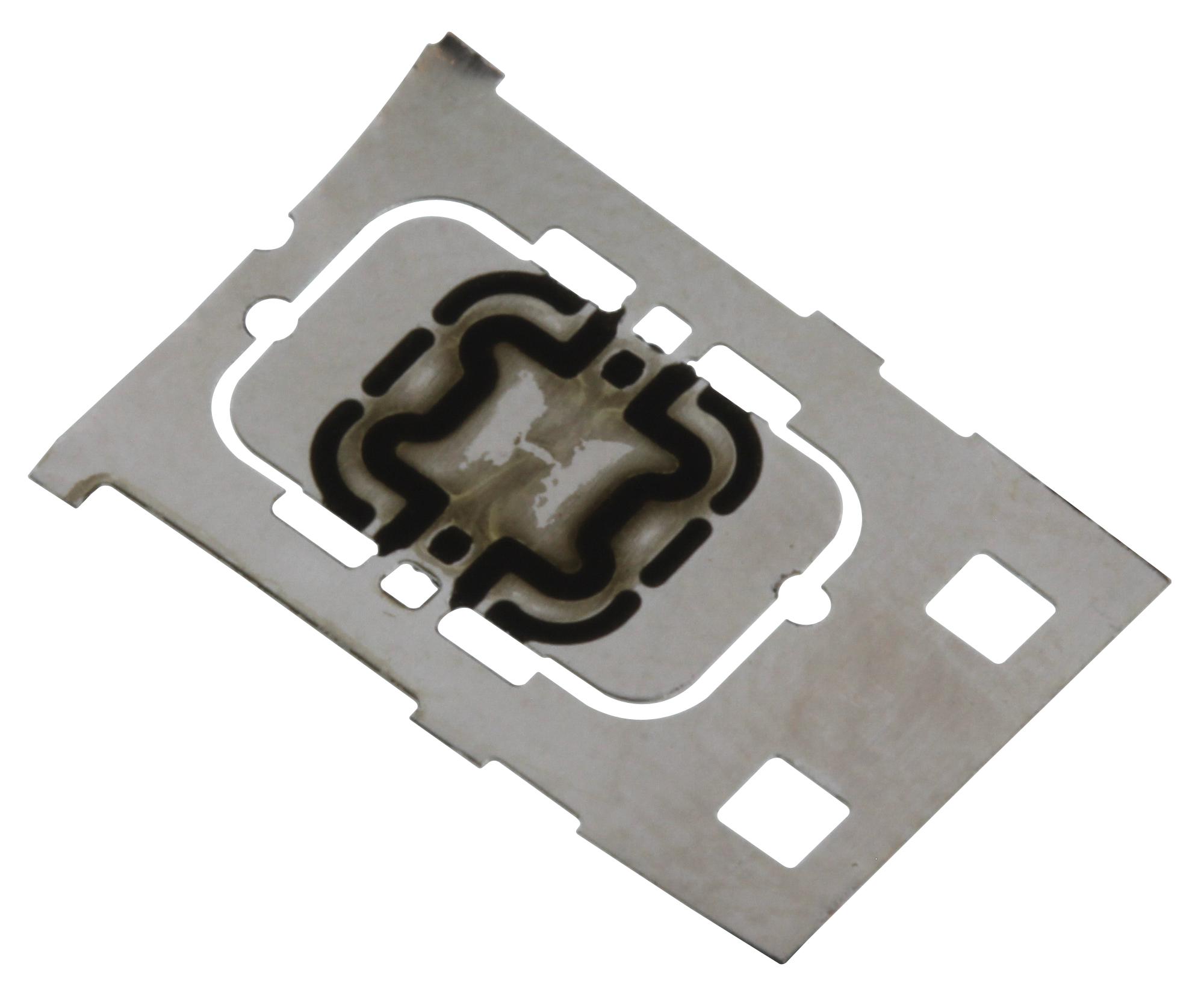

NXP HT2MOA4S20E3RJ Contactless ID Transponder
The HITAG 2 transponder is a highly integrated contactless identification device suitable for various applications such as logistics, livestock tracking, and industrial automation. Operating at 125 kHz, it relies solely on RF energy for power and communication, with a bidirectional half-duplex interface. It features 256 bits of secure non-volatile memory, configurable modes, and access protections. Supporting encryption, mutual authentication, and multiple coding schemes, it offers a read/write distance matching RF capabilities, data retention of 10 years, and up to 100,000 write cycles, ensuring durability and security.
NXP HT2MOA4S20E3RJ Contactless ID Transponder Specifications:
- Carrier Frequency: 125 kHz
- Memory Capacity: 256 bit (organized in 8 pages of 32 bits each)
- Memory Type: Non-volatile EEPROM
- Data Retention: 10 years
- Write Endurance: 100000 cycles
- Data Transmission: Bidirectional half-duplex
- Communication Coding Schemes: Biphase, Manchester
- Power Supply: RF energy from reader, no internal battery
- Security Features: Mutual authentication, configurable access, encryption modes
- Reading/Writing Distance: Similar for both operations
- Supported Modes: Public Mode A, B (ISO 11784/11785), C (PIT compatible)
- Operating Temperature Range: Most applications suitable at Tajuma < 55°C
- Application Use: Asset tracking, livestock identification, industrial automation
Buy the NXP Series HITAG 2 Transponder: HT2MOA4S20E3RJ
Purchase NXP HITAG 2 contactless identification transponder HT2MOA4S20E3RJ online today. Designed for reliable RFID applications, it features 256-bit non-volatile memory, secure modes, encryption, and long-lasting durability. Ideal for logistics, livestock tracking, and industrial automation, this transponder offers a read/write distance matching RF capabilities, data retention of 10 years, and up to 100,000 write cycles. Enhance your asset and livestock management systems with this highly secured, easy-to-configure RFID transponder for efficient contactless operations.
Get NXP HITAG 2 transponder HT2MOA4S20E3RJ today—built for secure contactless identification in industrial automation and livestock management.
Frequently Asked Questions
Where can I buy NXP HT2MOA4S20E3RJ?
You can click on the BUY or RFQ button to purchase HT2MOA4S20E3RJ from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part HT2MOA4S20E3RJ?
You can download the HT2MOA4S20E3RJ datasheet or visit the NXP website for support.
Who is the manufacturer of HT2MOA4S20E3RJ?
NXP
