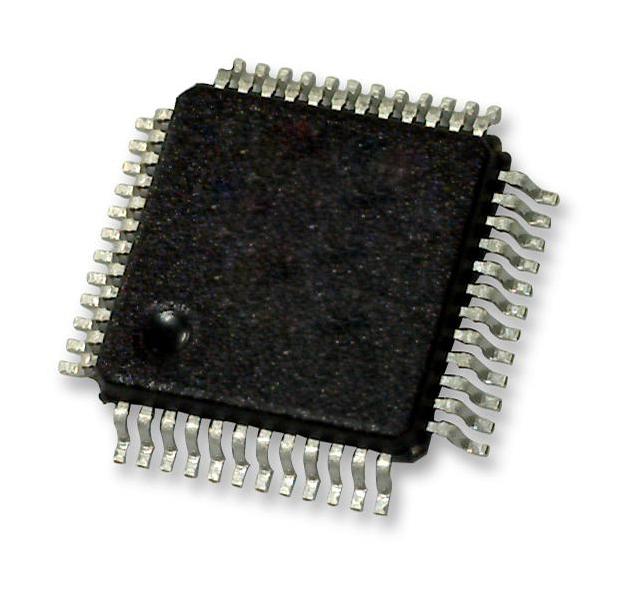

NXP PCA9663B118 Bus Interface Controller
The PCA9663 is an advanced, high-speed bus controller designed to convert a parallel 8-bit data interface into three independent Fast-Mode Plus I2C-bus channels. It features three 4352-byte buffers per channel, supporting data rates up to 1 Mbit/s, and includes automatic sequence looping, external trigger synchronization, and error reporting. The device is suitable for data-intensive applications, such as LED matrix control and entertainment systems, providing seamless integration of multiple I2C-bus devices with minimal CPU overhead. Its robust features enable reliable operation in complex serial communication environments.
NXP PCA9663B118 Bus Interface Controller Specifications:
- Supply Voltage: 3.0 V to 3.6 V
- I2C-bus supply voltage: 3.0 V to 5.5 V
- Data Rate: Up to 1 Mbit/s (Fm+)
- Buffer Size: 4352 bytes per channel, total 13056 bytes
- Channels: Three independent channels
- Package: LQFP48 (7 x 7 x 1.4 mm)
- Operational Temperature Range: -40°C to +85°C
- Error Reporting: Interrupt-driven, error status registers
- External Trigger Input: Synchronizes sequence retransmission
- Includes internal oscillator with ±1% accuracy
- Supports bus recovery and error detection
- Pin configuration includes SDA, SCL for each channel, and power/ground pins
- Compliance: UL, CSA, ESD protection exceeding 8000 V HBM
Buy the NXP Series PCA9663 Parallel Bus to I2C: PCA9663B118
Purchase the NXP PCA9663B118 online today for reliable, high-speed serial data conversion from parallel interfaces to three independent I2C channels. Designed for data-intensive applications like LED control and entertainment systems, this controller offers large buffers, automatic sequence looping, and robust error handling. Its compact LQFP48 package ensures easy installation and integration into complex systems. With support for up to 1 Mbit/s data rate and external trigger synchronization, the PCA9663 guarantees precise, efficient bus management and minimal CPU load. Buy now to enhance your serial communication setup with advanced features and dependable performance.
Get NXP PCA9663B118 today—built for precision, large buffer capacity, and high-speed serial communication efficiency.
Frequently Asked Questions
Where can I buy NXP PCA9663B118?
You can click on the BUY or RFQ button to purchase PCA9663B118 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part PCA9663B118?
You can download the PCA9663B118 datasheet or visit the NXP website for support.
Who is the manufacturer of PCA9663B118?
NXP
