NXP KTY81120112 Silicon Temperature Sensor
The KTY81 series are silicon temperature sensors with a positive temperature coefficient of resistance, encapsulated in a plastic SOD70 package with in-line leads. They feature high accuracy, reliable long-term stability, and linear characteristics, making them suitable for measurement and control systems. Designed to operate within -55°C to +150°C, they have low drift and are sensitive to electrostatic discharge. These sensors are ideal for precise temperature measurement in industrial applications, ensuring fail-safe behavior and consistent performance over time.
NXP KTY81120112 Silicon Temperature Sensor Specifications:
- Resistance: KTY81/110 990-1010 Q, KTY81/120 980-1020 Q, KTY81/121 980-1000 Q, KTY81/122 1000-1020 Q, KTY81/150 950-1050 Q, KTY81/210 1980-2020 Q, KTY81/220 1960-2040 Q, KTY81/221 1960-2000 Q, KTY81/222 2000-2040 Q, KTY81/250 1900-2100 Q
- Temperature Range: -55°C to +150°C
- Ambient Temperature Coefficient: Approx. -0.79 %/K (KTY81/110), varies by series
- Thermal Time Constant: 30 seconds in still air; 3-5 seconds in flowing liquid
- Maximum Continuous Sensor Current: 10 mA in free air at 25°C, 2 mA at 150°C
- Package Type: SOD70 plastic encapsulated with in-line leads
- Lead-to-Lead Distance: Spread leads 5.08 mm, reel packaged 5.08 mm pitch
- Dimensions: Body width 44-48 mm, height 5-5.2 mm, thickness 36-42 mm
- Operating Temperature: -55°C to +150°C
- Resistance Drift over 10,000 hours at 25°C: KTY81/1 series 1.6 Q, KTY81/2 series 3.2 Q
- Lead Length: Customizable, with feed hole pitch of 127 mm
- Electrical Characteristics: Resistance at 25°C, resistance ratio, and temperature coefficients provided
- Handling caution: Sensitive to ElectroStatic Discharge (ESD).

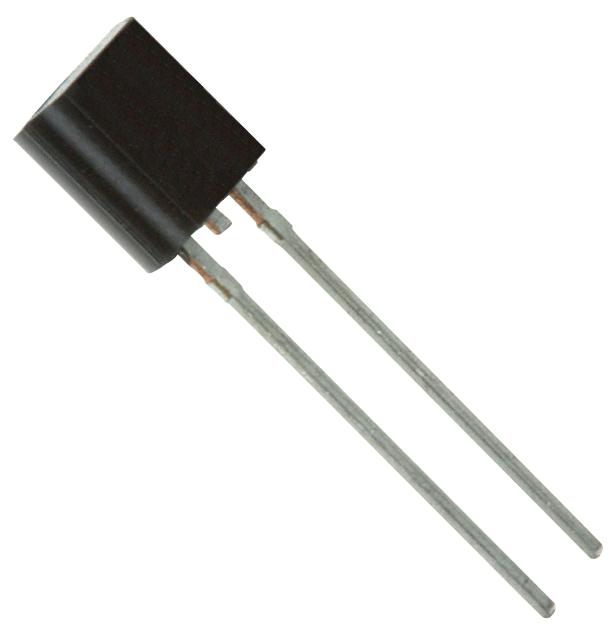

Buy the Buy NXP Silicon Temperature Sensor Part Number KTY81120112 Online
Purchase the NXP silicon temperature sensor KTY81/122 online today to ensure accurate temperature measurement in your industrial systems. Engineered for high reliability, it provides precise resistance-based temperature sensing across a wide range of environments. With long-term stability and linear response, the sensor is suitable for measurement and control applications demanding dependable performance. The compact SOD70 package simplifies integration into various electronic systems, offering durability and ease of handling. Order now and experience uncompromised quality, fast delivery, and technical support from authorized distributors for your next project.
Get NXP silicon temperature sensor KTY81/122 today—built for precision and long-lasting durability in temperature measurement applications.
Frequently Asked Questions
Where can I buy NXP KTY81120112?
You can click on the BUY or RFQ button to purchase KTY81120112 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part KTY81120112?
You can download the KTY81120112 datasheet or visit the NXP website for support.
Who is the manufacturer of KTY81120112?
NXP
