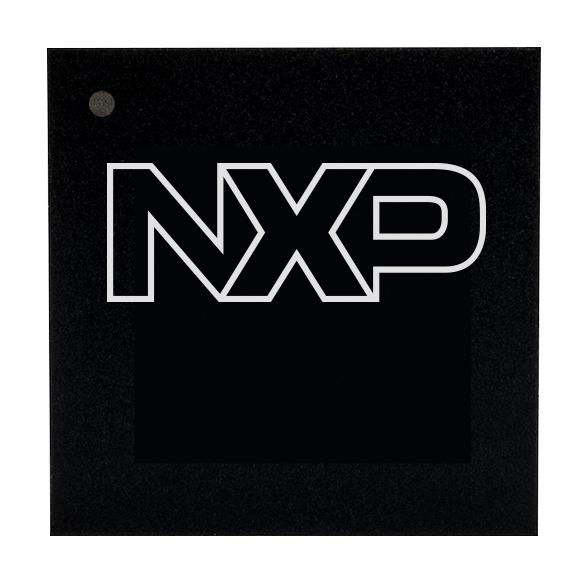

NXP MCIMX31LCVKN5D Multimedia Application Processor
The MCIMX31L is a high-performance multimedia application processor based on the ARM1136JF-S core, optimized for low power consumption and supporting real-time video encoding, streaming, and 3D graphics acceleration. Designed for portable media, smartphones, and multimedia devices, it features an integrated cache system, multiple external memory interfaces including DDR, NAND, NOR Flash, and supports high-speed USB 2.0 OTG, multimedia hardware accelerators, secure connectivity, and advanced power management with dynamic voltage and frequency scaling for energy-efficient operation.
NXP MCIMX31LCVKN5D Multimedia Application Processor Specifications:
- Core: ARM1136JF-S Microprocessor, supports ARM Thumb and Jazelle
- Clock Frequency: up to 532 MHz with dynamic scaling
- Caches: 16 KB Instruction, 16 KB Data L1 caches, 128 KB L2 Cache
- Memory Interfaces: DDR, NAND, NOR Flash, SDRAM, SRAM
- Video Hardware: MPEG-4 hardware encoder VGA @30 fps, video post-processing, 3D acceleration
- Power Management: Dynamic voltage and frequency scaling, multiple clock domains, power gating
- External Devices: High-speed USB 2.0 OTG, ATA, MMC/SDIO, Compact Flash
- Built in peripherals: UART, SPI, I2C, PWM, Timers, GPIO, Security modules
- Package Options: 14x14 mm Case 1581 with 0.5 mm pitch; 19x19 mm Case 1931 with 0.8 mm pitch
- Operating Voltage: 1.2V to 1.65V core, 1.75V to 3.3V I/O
- Temperature Range: -20°C to 70°C and 0°C to 85°C options
- RoHS compliant, RoHS Case 1581 and 1931, lead-free
- Advanced Power Saving: clock gating, power gating, DVFS
Buy the Buy Freescale MCIMX31L Part Number MCIMX31LCVKN5D Online
Discover the Freescale MCIMX31LCVKN5D multimedia processor, designed for low power consumption and high-performance applications like smartphones and media players. It supports real-time VGA video encoding, streaming, 3D graphics acceleration, integrated caches, and multiple external memory interfaces including DDR, NAND, NOR Flash, and USB 2.0 OTG. Its advanced power management features, such as dynamic voltage and frequency scaling, ensure energy-efficient operation. Efficient connectivity options and secure peripherals make it ideal for portable multimedia and embedded systems, providing reliable performance for demanding multimedia applications.
Order your Freescale MCIMX31LCVKN5D multimedia processor today and power your portable multimedia devices with low power consumption and high performance.
Frequently Asked Questions
Where can I buy NXP MCIMX31LCVKN5D?
You can click on the BUY or RFQ button to purchase MCIMX31LCVKN5D from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MCIMX31LCVKN5D?
You can download the MCIMX31LCVKN5D datasheet or visit the NXP website for support.
Who is the manufacturer of MCIMX31LCVKN5D?
NXP
