NXP LPC54114J256BD64QL Dual-Core Microcontroller
The LPC54114J256BD64 is a dual-core 32-bit ARM Cortex-M4 and Cortex-M0+ microcontroller designed for embedded applications. It features up to 256 KB flash, 64 KB SRAM, full-speed USB interface with crystal-less operation, advanced timers, ADC, DMA, flexible serial interfaces including UART, SPI, I2C, and I2S, along with multimedia peripherals like a PDM microphone interface and temperature sensor. It supports low power modes, extensive GPIO, and sophisticated clocking options such as the system PLL, FRO oscillator, and external clock inputs, making it suitable for diverse IoT, industrial, and audio applications.
NXP LPC54114J256BD64QL Dual-Core Microcontroller Specifications:
- Core: ARM Cortex-M4 and M0+ dual cores, up to 100 MHz each.
- Flash memory: 256 KB with accelerator, SRAM: 64 KB total.
- USB Full-Speed device interface, crystal-less operation, supports CDC, HID, MSC, DFU protocols.
- Memory: 32 KB ROM API, In-System and In-Application Programming support.
- Timers: 5× 32-bit timers, SCTimer/PWM, Multi-Rate Timer, Watchdog Timer.
- Analog: 12-bit ADC with 5 MSamples/sec, internal temperature sensor, PDM microphone interface.
- Serial interfaces: 8 Flexcomm modules supporting USART, SPI, I2C, and I2S; supports IEEE 754 floating point in M4 core.
- Clocking: Internal FRO oscillator (12, 48, 96 MHz), System PLL, external clock input (up to 25 MHz), RTC oscillator (32.768 kHz).
- Low power modes: Sleep, Deep-sleep, Deep power-down with selective peripheral retention and wake-up sources.
- Power supply: 1.62 V to 3.6 V, power management with reduced consumption modes.
- Package options: WLCSP49 ( wafer level chip-scale) and LQFP64 (low-profile quad flat).
- Operating temperature: -40°C to +105°C, ESD protection, and robust reliability features.

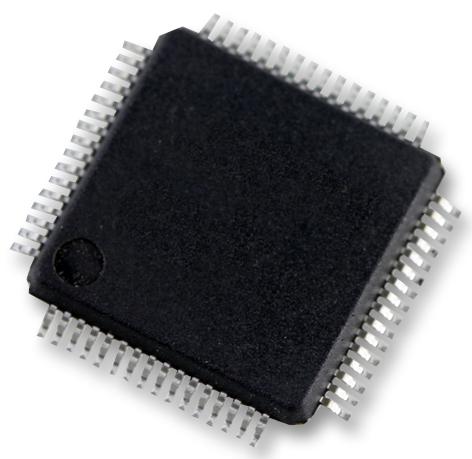

Buy the NXP Series LPC5411x 32-bit ARM Cortex-M4 and M0+ Microcontroller: LPC54114J256BD64
Get your NXP LPC54114J256BD64 microcontroller online today. With dual-core ARM Cortex-M4 and M0+ cores, 256KB flash, extensive peripherals, and low power modes, it’s ideal for IoT, industrial, and multimedia applications. This device supports USB full-speed with crystal-less operation, high-speed ADC, flexible serial interfaces including UART, SPI, I2C, and I2S, and advanced timers for complex control tasks. Order now to experience reliable performance, comprehensive security features, and advanced power management suitable for demanding embedded systems.
Order your NXP Series LPC5411x LPC54114J256BD64 today and enhance your embedded projects with reliable performance and flexible integration.
Frequently Asked Questions
Where can I buy NXP LPC54114J256BD64QL?
You can click on the BUY or RFQ button to purchase LPC54114J256BD64QL from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part LPC54114J256BD64QL?
You can download the LPC54114J256BD64QL datasheet or visit the NXP website for support.
Who is the manufacturer of LPC54114J256BD64QL?
NXP
