NXP NX20P0407UKAZ USB Type C Port Protection IC
The NX20P0407 is a robust USB Type C port protection IC designed to safeguard CC1/2 and SBU1/2 pins from voltages up to 28V, preventing shorts with VBUS during plug-in or moisture exposure. It features high surge protection, IEC 61000-4-2 ESD, fast over-voltage disconnect, low leakage currents, and is suitable for smartphones, tablets, and laptops. The chip ensures reliable operation under abnormal conditions with quick response times and integrated ESD immunity, enhancing device durability and safety in USB Type C applications.
NXP NX20P0407UKAZ USB Type C Port Protection IC Specifications:
- Voltage Tolerance: 28V DC on CC and SBU pins
- ESD Protection: IEC 61000-4-2 Contact 8KV, Air 15KV
- Surge Protection: +/- 35V on CC pins
- Switch Resistance: CC switch 160mΩ, SBU switch 3.6Ω
- Leakage current: SYS 32μA, CC 1/2 < 1μA
- Response Time: Over-voltage disconnect in 60ns
- Temperature Range: -40°C to +85°C

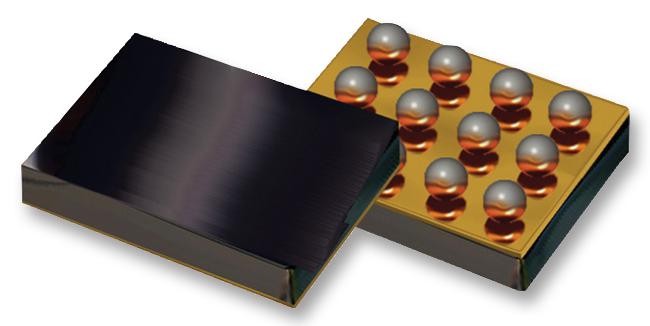

- Device Size: 12 bumps wafer-level chip, 1.27 x 1.67 x 0.525 mm
- Application: Smartphones, Tablets, Laptops
Buy the NXP Series NX20P0407 USB Type C Protection: NX20P0407UK
Enhance the durability and safety of your USB Type C devices with the NX20P0407UK protection IC. Designed to safeguard CC and SBU pins from high voltage surges and shorts, it offers high ESD immunity, rapid over-voltage disconnect in just 60 nanoseconds, and robust surge protection. Suitable for smartphones, tablets, and laptops, this chip ensures reliable operation even in harsh environments by preventing damage from moisture, dust, and electrical disturbances. Purchase online now to secure top-tier protection for your products.
Buy NXP NX20P0407UK now and experience unmatched reliability and performance in your USB Type C port protection solutions.
Frequently Asked Questions
Where can I buy NXP NX20P0407UKAZ?
You can click on the BUY or RFQ button to purchase NX20P0407UKAZ from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part NX20P0407UKAZ?
You can download the NX20P0407UKAZ datasheet or visit the NXP website for support.
Who is the manufacturer of NX20P0407UKAZ?
NXP
