NXP MC33PT2001AE Programmable Solenoid Controller
The MC33PT2001 is a smart, programmable MOSFET gate driver IC designed for solenoid control in automotive applications, including engine injectors, valves, VVA, suspension systems, and transmission solenoid drivers. It features five high-side and six low-side predrivers, integrated bootstrap and charge pump circuitry, configurable fault diagnostics, and end-of-injection detection. The device's microcores enable flexible control, reduced latency, and microcode protection. With SPI control, power management, and compatibility with 12V and 24V systems, it provides a cost-effective, reliable solution for complex vehicle control systems.
NXP MC33PT2001AE Programmable Solenoid Controller Specifications:
- High-side predrivers: 5 channels with 4 programmable slew rates (12.5 V/us to 300 V/us)
- Low-side predrivers: 6 channels with 4 programmable slew rates (12.5 V/us to 300 V/us)
- Integrated bootstrap circuit and charge pump for high-side predrivers
- Microcores running at 6 MHz with encrypted microcode protection
- Supports fault diagnostics including open load, undervoltage, overvoltage, overcurrent, overtemperature
- Built-in 7.0 V linear regulator for gate power supply and 1.5 V regulator for digital core
- Supports external 5 V or 3.3 V for digital I/O operation
- SPI control interface with IRQB and interrupt flags, up to 10 MHz
- Maximum voltage ratings: Vbat up to 72 V, Vboost up to 36 V, Vcc supplies at 5 V and 7 V
- Operating temperature range: -40°C to +125°C, junction up to 150°C
- Package: HLOFP64, a plastic, thermal-enhanced low profile quad flat package with 64 pins
- Designed for automotive, industrial powertrain, GDI, DIDI, CNG engines, VVA, suspension systems, and transmission applications
- Compliant with ISO 26262 for functional safety

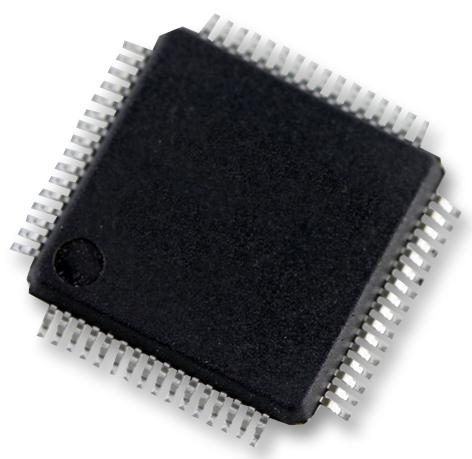

Buy the Buy NXP MC33PT2001AE Programmable Solenoid Controller Part Number MC33PT2001AE Online
Purchase the NXP MC33PT2001AE today to enhance your automotive system with a flexible, protected, and high-performance solenoid driver. Its integrated microcores, diagnostics, and power management features ensure reliable operation in engine injectors, VVA, suspension, and transmission applications. With advanced fault protection, encrypted microcode, and support for Vbat up to 72 V, this device guarantees durability and precise control. Buy online now and ensure your automotive projects benefit from proven technology, extensive features, and optimal performance in demanding environments.
Get NXP MC33PT2001AE today—optimized for precise engine control, smart diagnostics, and long-lasting durability in automotive environments.
Frequently Asked Questions
Where can I buy NXP MC33PT2001AE?
You can click on the BUY or RFQ button to purchase MC33PT2001AE from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MC33PT2001AE?
You can download the MC33PT2001AE datasheet or visit the NXP website for support.
Who is the manufacturer of MC33PT2001AE?
NXP
