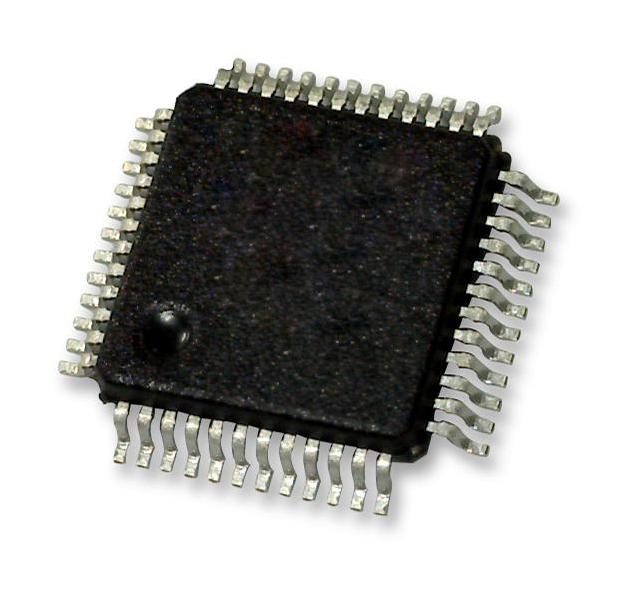

NXP MC908AP64ACFAE Microcontroller
The MC908AP64A is a high-performance 8-bit microcontroller featuring 62,368 bytes of FLASH memory, 2,048 bytes of RAM, and multiple integrated modules including timers, serial interfaces, ADC, and system control functionalities, designed for industrial and control applications. It supports various low-power modes, flexible clock options, and extensive I/O capabilities, making it suitable for embedded systems requiring reliable operation with configurable clock sources, external interrupts, and memory protection features.
NXP MC908AP64ACFAE Microcontroller Specifications:
- Flash Memory Size: 62,368 bytes
- RAM Size: 2,048 bytes
- Package: 48-pin Low-Profile Quad Flat Pack (LQFP)
- Operating Voltage: 4.5V to 5.5V
- Operating Temperature Range: -40°C to +85°C
- Internal Clock Frequency: Up to 8 MHz
- External Oscillator Options: Crystal (1-8 MHz), RC, Internal Oscillator
- Peripheral Modules: Timer 1 and Timer 2, SCI, IRSCI, SPI, IIC, ADC, KBI
- Low Power Modes: WAIT, STOP
- Memory Map: FLASH, RAM, System ROM, Vector Space
- System Control Features: Reset, Watchdog, Low Voltage Inhibit, Break and Interrupt Modules
- Clock Generation: PLL with configurable frequency, VCO range, prescaler, and reference divider
- I/O Ports: 32 pins shared among GPIO, serial interfaces, timers, and external interrupt inputs
- Protection Features: FLASH block protect, security features for Flash memory
- External Interrupts: Two external maskable inputs (IRQ1, IRQ2) with edge and level sensitivity
- Power Supply: Vpp (power), Vss (ground), Vppa (analog power), Vgga (ground for analog).
Buy the Freescale Series 908A Flash Memory Microcontroller: MC908AP64A
Discover the high-performance MC908AP64A, a robust 8-bit microcontroller with 62kB FLASH, 2KB RAM, timers, serial interfaces, ADC, and low-power modes, suitable for industrial and control applications. It offers flexible clock options including crystal, RC, and internal oscillator, along with extensive I/O capabilities and security features. Designed for reliable embedded systems, this device supports low-power standby modes like WAIT and STOP, making it ideal for energy-efficient applications requiring configurable clock sources, external interrupts, and memory protection for durable, industrial-grade operation.
Order your Freescale Series 908A MC908AP64A today and give your embedded projects the dependable performance, flexible clock options, and extensive I/O capabilities they deserve.
