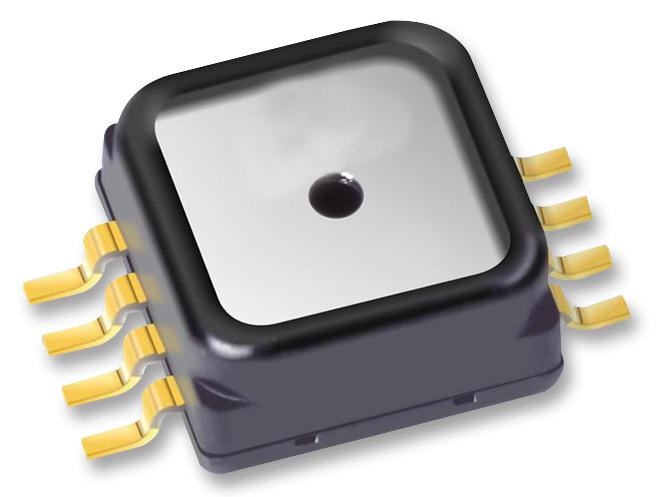

NXP MPXH6115A6T1 Pressure Sensor
The MPXH6115A6T1 is a compact, highly reliable silicon pressure sensor designed for precise measurement of absolute pressure in industrial and automotive applications. Featuring on-chip temperature compensation and integrated signal conditioning circuitry, it offers accurate analog output proportional to applied pressure. Its small form factor fits easily into microcontroller systems, making it ideal for engine control, weather stations, and industrial controls. The device is resistant to humidity, operates reliably over -40°C to +125°C, and ensures stable performance with minimal error over a broad temperature range.
NXP MPXH6115A6T1 Pressure Sensor Specifications:
- Pressure Range: 15 to 115 kPa
- Supply Voltage: 4.75 to 5.25 Vdc
- Output Voltage: 4.633 to 4.768 V at full scale
- Offset Voltage: 0.133 to 0.268 V at 0°C to 85°C
- Maximum Pressure: 400 kPa
- Operating Temperature: -40°C to +125°C
- Temperature Compensation: Yes
- Accuracy: ±15%Vess
- Response Time: 1.0 ms
- Sensitivity: 45.0 mV/kPa
- Storage Temperature: -40°C to +125°C
- Output Current: Max 0.5 mA
- Package Types: Small Outline, Super Small Outline, SSOP
- RoHS Compliant
Buy the Freescale MPXH6115A6T1 – Reliable Pressure Sensor for Industrial Applications
Enhance your systems with the high-precision Freescale Pressure Sensor MPXH6115A6T1. Featuring integrated temperature compensation, it provides stable, accurate pressure readings from 15 to 115 kPa. Its small form factor makes it perfect for tight spaces in industrial automation, engine control, and weather monitoring systems. Operating reliably over -40°C to +125°C, this sensor ensures longevity, accuracy, and consistent performance. Buy online today to add this reliable component to your engineering solutions and improve your project’s measurement capabilities.
Order your Freescale MPXH6115A6T1 pressure sensor today and ensure precise, dependable pressure measurement for your industrial and automotive projects.
Frequently Asked Questions
Where can I buy NXP MPXH6115A6T1?
You can click on the BUY or RFQ button to purchase MPXH6115A6T1 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MPXH6115A6T1?
You can download the MPXH6115A6T1 datasheet or visit the NXP website for support.
Who is the manufacturer of MPXH6115A6T1?
NXP
