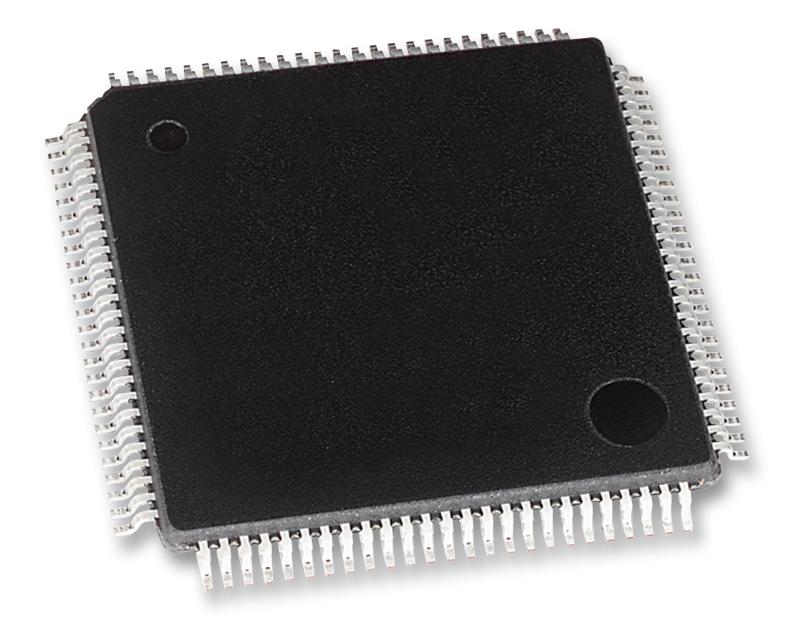

NXP MKM35Z512VLL7 Energy Metering Microcontroller
The MKM35Z512VLL7 is a high-precision, secure 32-bit microcontroller designed for advanced metering applications. Features include an analog front end, auto-calibrated energy measurement, hardware tamper detection, a segment LCD controller, and low power modes. It supports 1, 2, and 3-phase metering with regional compliance standards like WELMEC and OIML. Equipped with up to 512 KB flash memory, 64 KB SRAM, and rich security protection, this device offers robust performance for energy metering, ensuring accuracy and security in smart energy systems.
NXP MKM35Z512VLL7 Energy Metering Microcontroller Specifications:
- Core: ARM Cortex-M0+ up to 75 MHz
- Memory: Up to 512 KB flash, Up to 64 KB SRAM
- Analog Front End: 4x 24-bit ZA ADCs with PGA, 16-channel SAR ADC, 16-bit SAR ADC
- Power: Voltage range 1.71 V to 3.6 V (with AFE), 0.5mm x 0.5mm pitch
- Security: Hardware tamper detection with timestamp, security protection features
- Operational Temp: -40°C to +105°C
- Package: 144-pin LQFP, 20 mm x 20 mm
- Compliance: WELMEC, OIML regional standards
- Features: LCD segment controller, low power modes, memory protection, cryptographic acceleration
- Dimensions: 20 mm x 20 mm, 144 pins in LQFP packaging
- Clock: Internal reference clock up to 75 MHz, low-power RTC, external crystal support
- Interfaces: SPI, I2C, UART, GPIO, external memory support
- Operating conditions: 1.71 V to 3.6 V, ambient temp -40°C to 105°C
Buy the NXP Series KM35 MKM35Z512VLL7: High-Precision Energy Metering Microcontroller
Securely purchase the NXP microcontroller MKM35Z512VLL7 today online and enhance your energy metering systems with high accuracy, advanced security features, and low power operation. Designed for 1-, 2-, and 3-phase energy measurement, this device provides excellent compliance with regional standards like WELMEC and OIML. Its rich feature set includes an analog front end with high-precision ADCs, hardware tamper detection, LCD control, and up to 512 KB flash memory. Ensure your smart energy solutions are reliable, secure, and future-proof by ordering online now.
Buy NXP MKM35Z512VLL7 now and experience unmatched reliability and performance in energy metering applications.
Frequently Asked Questions
Where can I buy NXP MKM35Z512VLL7?
You can click on the BUY or RFQ button to purchase MKM35Z512VLL7 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MKM35Z512VLL7?
You can download the MKM35Z512VLL7 datasheet or visit the NXP website for support.
Who is the manufacturer of MKM35Z512VLL7?
NXP
