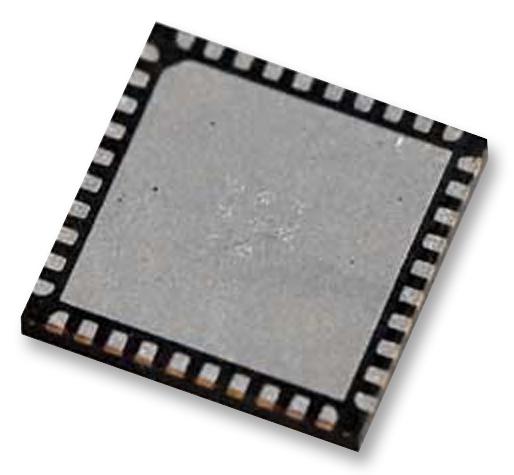

NXP MPF5023AVNA0ES High-Performance Power IC
The MPF5023AVNA0ES is a high-performance power management IC designed for advanced multimedia applications. It integrates multiple high-efficiency buck regulators, supporting seamless system power sequencing, programmable soft-start, and dynamic voltage scaling. Featuring built-in safety features, including voltage monitoring with dedicated bandgap references, thermal shutdown, and comprehensive fault protection, the device is suitable for automotive, industrial, and high-end consumer systems. It supports fast startup, spread-spectrum clocking, and external synchronization, ensuring reliable and efficient power delivery in complex applications.
NXP MPF5023AVNA0ES High-Performance Power IC Specifications:
- Input Voltage Range: 0.4V to 18V
- Output Voltage Range: 0.4V to 1.8V (programmable step of 6.25 mV)
- Maximum Output Current: 2.5A per regulator
- Number of Buck Regulators: 3 (SW1, SW2, SW3)
- Switching Frequency: 2.0 MHz to 3.0 MHz (programmable via CLK_FREQ[3:0])
- Ramp Rates: DVS Ramp: 12.5 mV/μs (typical), configurable
- Thermal Shutdown Thresholds: 70 to 165°C with hysteresis
- Voltage Monitoring: OV and UV thresholds, programmable with hysteresis and debounce
- External Clock Sync: Yes, supports external synchronization with SYNC pin
- Spread Spectrum: Enabled/disabled, ±5% to ±10% modulation range
- Fault Protection: Overvoltage, undervoltage, overcurrent, thermal shutdown
- Communication Interface: I2C supporting up to 3.4 MHz, CRC verification, secure write options
- Package: HVQFN40 (SOT618-14), compact 6mm x 6mm footprint
- Operating Temperature: -40°C to 125°C
- Designed for safety-critical applications, with features supporting ASIL B compliance
Buy the NXP Series PF5023 High-Performance Power Management IC: MPF5023AVNA0ES
Discover the NXP MPF5023AVNA0ES power management IC designed for demanding multimedia and automotive applications. It offers multiple high-efficiency buck regulators with programmable output voltages and seamless power sequencing, ensuring reliable, fast startup, and advanced fault protection. Featuring spread-spectrum clocking, external synchronization, and critical safety functions, this compact device supports ASIL B safety standards. Perfect for industrial, automotive, and high-end consumer systems, it guarantees optimal power delivery, high efficiency, and system safety in a versatile, easy-to-integrate package. Order online today and enhance your system’s reliability and performance with trusted NXP technology.
Get NXP MPF5023AVNA0ES today—built for precision, safety, and long-lasting durability in high-performance applications.
Frequently Asked Questions
Where can I buy NXP MPF5023AVNA0ES?
You can click on the BUY or RFQ button to purchase MPF5023AVNA0ES from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MPF5023AVNA0ES?
You can download the MPF5023AVNA0ES datasheet or visit the NXP website for support.
Who is the manufacturer of MPF5023AVNA0ES?
NXP
