NXP MPX10GP Silicon Pressure Sensor
The MPX10GP series silicon piezoresistive pressure sensors offer high accuracy and linear voltage output directly proportional to applied pressure, suitable for environmental control, industrial, medical, and pneumatic systems. These uncompensated sensors feature a durable epoxy unibody package with multiple port options, including single, dual, gauge, differential, and absolute configurations. Operating within a differential pressure range of 0 to 10 kPa, they deliver a sensitivity of approximately 35 mV/kPa, with a full-scale span adjustable up to 50 mV, ensuring reliable performance in various applications.
NXP MPX10GP Silicon Pressure Sensor Specifications:
- Differential Pressure Range: 0 - 10 kPa
- Supply Voltage: 3.0 - 6.0 Vdc
- Supply Current: 60 mA
- Full Scale Span: 20 - 50 mV
- Sensitivity: 35 mV/kPa
- Linearity: -1.0 to 1.0 Vess
- Pressure Hysteresis: 0 to 20.1 Vess
- Temperature Coefficient of Span: 0.22%/°C
- Temperature Coefficient of Offset: -215%/°C
- Response Time: 1.0 ms
- Maximum Pressure: 75 kPa
- Burst Pressure: 100 kPa
- Operating Temperature Range: -40°C to +125°C
- Storage Temperature: -40°C to +125°C
- Package: Small Outline (482A case), includes ports for differential or gauge pressure
- Material: Epoxy unibody, stainless steel port options available

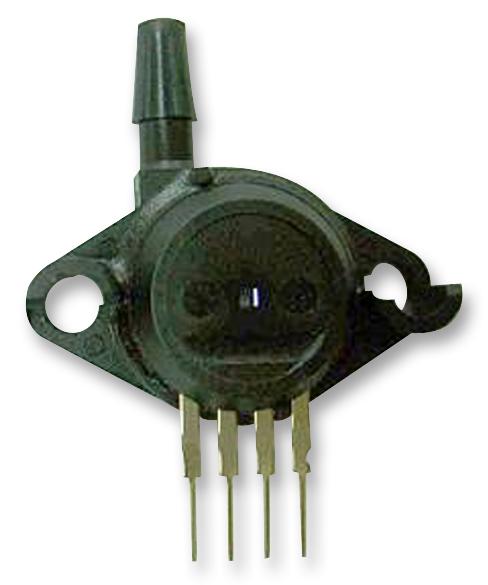

Buy the Buy Freescale MPX10GP Part Number MPX10GP Online
Purchase the Freescale MPX10GP pressure sensor online today and enjoy a compact, high-precision device ideal for environmental, industrial, and medical applications. Designed for durability and accuracy, this uncompensated sensor features a robust epoxy unibody package and offers multiple port configurations including gauge and differential. Its fast response time of 1 ms and wide operating temperature range ensure dependable performance across various conditions. Order now to enhance your system's pressure measurement capabilities with this reliable and cost-effective sensing solution.
Buy Freescale MPX10GP now and experience high accuracy and reliable performance in pressure sensing applications.
Frequently Asked Questions
Where can I buy NXP MPX10GP?
You can click on the BUY or RFQ button to purchase MPX10GP from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MPX10GP?
You can download the MPX10GP datasheet or visit the NXP website for support.
Who is the manufacturer of MPX10GP?
NXP
