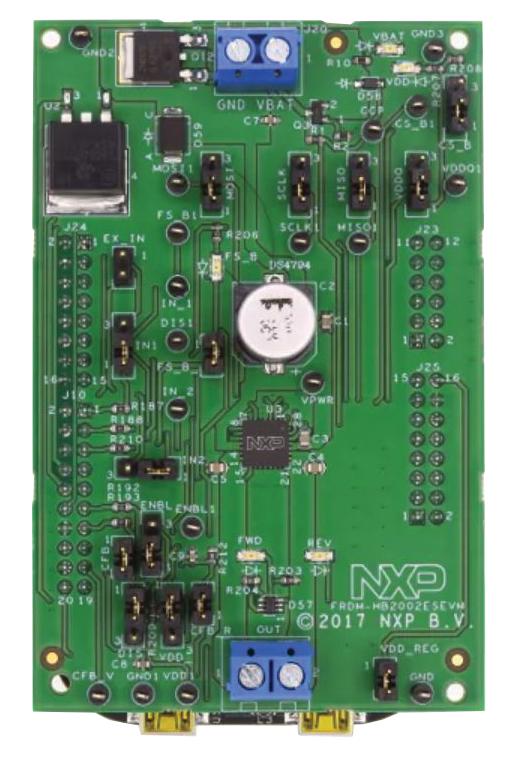

NXP FRDMHB2002ESEVM Motor Driver Evaluation Kit
The FRDM-HB2002ESEVM is an evaluation kit that demonstrates the full functionality of the MC33HB2002 H-bridge motor driver IC. It supports control via GPIO, PWM, and SPI interfaces, making it suitable for DC motor and servo control in automotive and industrial applications. Featuring built-in reverse battery protection, voltage regulation, fault diagnostics, and current feedback, it accommodates a wide operating voltage range from 5.0 V to 40 V and a peak current of 10 A. The kit includes a preprogrammed MC33HB2002, test points, LEDs, and screw terminals for easy setup and testing with a compatible MCU or lab equipment.
NXP FRDMHB2002ESEVM Motor Driver Evaluation Kit Specifications:
- Operating Voltage Range: 5.0 V to 40 V
- Peak Current: 10 A
- Continuous Load Current: 3.0 A (typical)
- Thermal Resistance: <1.0°C/W junction to case
- Package: HVQFN, 28-pin
- Fault Diagnostics: overtemperature, undervoltage, overvoltage, short to ground, open load
- Slew Rate Options: 0.25 V/μs to >16 V/μs via SPI
- Current Limits: 5.4 A, 7.0 A, 8.8 A, 10.7 A selectable via SPI
- Features: Reverse battery protection, built-in voltage regulator, status LEDs
- Supported Control: Full-bridge and half-bridge modes, PWM, GPIO, SPI
Buy the NXP MC33HB2002 EVALUATION – Reliable Motor Control for Industrial Applications
Discover the NXP MC33HB2002 motor driver evaluation kit for reliable and precise motor control in industrial and automotive applications. Featuring advanced diagnostics, real-time current feedback, reverse battery protection, and configurable slew rates, this comprehensive kit simplifies testing and development. Equipped with a preprogrammed microcontroller, test points, LEDs, and screw terminals, it ensures easy setup and integration with MCUs or lab equipment. Perfect for engineers seeking a robust solution for high-current DC motor or servo control, available for quick online ordering.
Order your NXP MC33HB2002 Evaluation Board today and experience high-performance motor control with built-in diagnostics and flexible control options.
Frequently Asked Questions
Where can I buy NXP FRDMHB2002ESEVM?
You can click on the BUY or RFQ button to purchase FRDMHB2002ESEVM from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part FRDMHB2002ESEVM?
You can download the FRDMHB2002ESEVM datasheet or visit the NXP website for support.
Who is the manufacturer of FRDMHB2002ESEVM?
NXP
