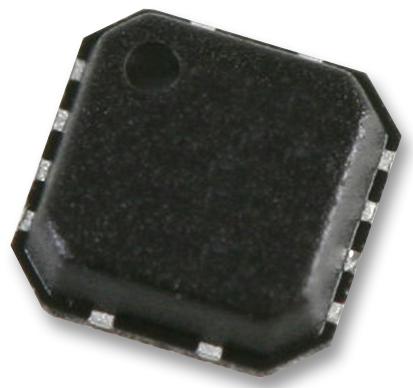

NXP NTB0104UK012 Voltage Level Translator
The NTB0104 is a dual supply translating transceiver designed for bidirectional voltage level translation with auto direction sensing and 3-state outputs. It supports wide supply voltage ranges from 1.2 V to 3.6 V on Veca and from 1.65 V to 5.5 V on Vecp, enabling effective interfacing between various low and high voltage systems. Features include partial power-down circuitry, ESD protection exceeding 2500 V, low power consumption, and operation from -40°C to +125°C. Packaging options include WLCSP, XQFN, and DIL packages for versatile application integration.
NXP NTB0104UK012 Voltage Level Translator Specifications:
- Supply Voltage A: 1.2 V to 3.6 V
- Supply Voltage B: 1.65 V to 5.5 V
- Input voltage range: Up to 5.5 V
- ESD Protection: >15,000 V (HBM), >2,500 V (A port)
- Temperature Range: -40°C to +125°C
- Power dissipation: Max 250 mW
- Package options: WLCSP12, XQFN12, DHVQFN14
- Output impedance during transitions: 40-70 Ω depending on supply voltage
- Input/output leakage current: <41 nA
- Propagation delay: 5.9–48 ns (typical)
Buy the Buy NXP Level Translator Part Number NTB0104UK012 Online
Order the NXP NTB0104UK012 online today to enhance your circuit designs with a versatile, bidirectional level translator. This device supports wide voltage ranges from 1.2V to 5.5V, making integration easy across different systems. It features auto direction sensing, 3-state outputs, and high ESD protection, ensuring durability and reliable performance. Ideal for interfacing low and high voltage electronic components, it offers fast propagation delays, low power consumption, and multiple packaging options to suit your application needs.
Buy NXP NTB0104UK012 now and experience unmatched reliability and high-voltage translation efficiency for your electronic systems.
Frequently Asked Questions
Where can I buy NXP NTB0104UK012?
You can click on the BUY or RFQ button to purchase NTB0104UK012 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part NTB0104UK012?
You can download the NTB0104UK012 datasheet or visit the NXP website for support.
Who is the manufacturer of NTB0104UK012?
NXP
