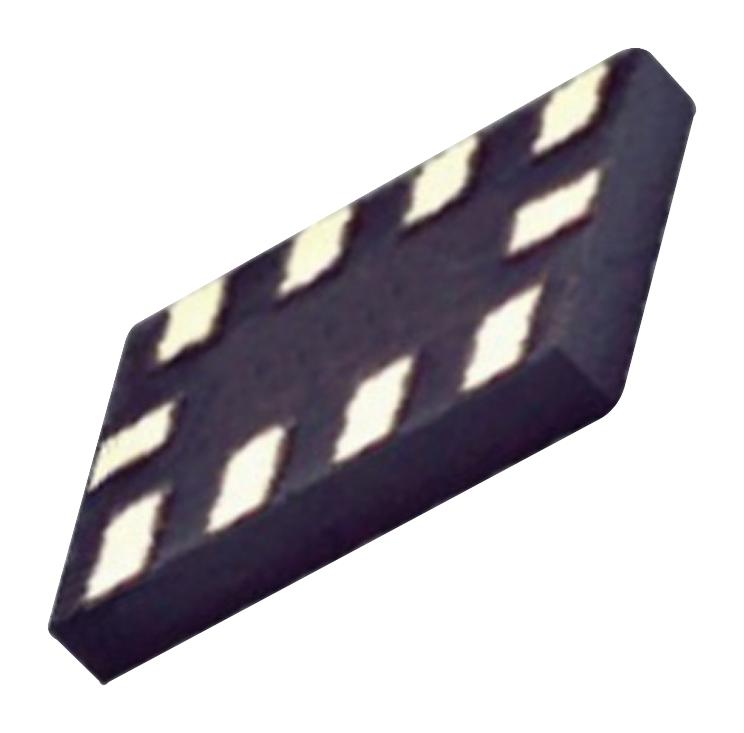

NXP CBTL01023GM115 High-Speed Differential Switch
The CBTL01023GM115 is a high-speed, 3.3 V differential 2:1 multiplexer/demultiplexer switch designed for PCI Express Gen3 applications. It enables efficient signal routing with minimal insertion loss, high bandwidth of 9 GHz, and low crosstalk, making it ideal for expanding high-speed serial interfaces such as PCIe, DisplayPort, USB 3.0, and SATA. Features include low power consumption, high impedance, and a shutdown mode for power savings. This compact XQFN10 package ensures reliable performance in high-frequency signal switching for advanced connectivity solutions.
NXP CBTL01023GM115 High-Speed Differential Switch Specifications:
- Supply Voltage: 3.3 V ±10%
- Bandwidth: 9 GHz at -3 dB
- Insertion Loss: -0.6 dB at 100 MHz, -1.5 dB at 4.0 GHz
- Isolation: -30 dB at 4 GHz
- Differential Insertion Loss: -3 dB bandwidth, 4 GHz
- Switching Time: 50 ns (approximate)
- On-Resistance: 70 Ohms (max at 4 GHz)
- Operating Temperature Range: -40°C to +85°C
- ESD Tolerance: 2000 V HBM, 1000 V CDM
- Package: XQFN10, dimensions 1.55 x 2.00 x 0.50 mm
- Shutdown Mode: Enabled via XSD pin for power savings
- Application: PCIe Gen3, DisplayPort 1.2, USB 3.0, SATA 6 Gbit/s
