NXP NX5P3090UKZ Power Switch
The NX5P3090 is a precision adjustable current-limited power switch optimized for USB Power Delivery applications and Type C ports. It features under-voltage lockout, over-temperature and reverse current protection, and surge tolerance exceeding +80 V on VBUS. The device includes an adjustable current limit from 400 mA to 3.3 A via an external resistor, soft start for surge reduction, and very low ON-resistance of 34 mΩ. Packaged in a compact 1.35 x 1.65 mm wafer-level chip-scale package, it supports up to 29 V on VBUS and is suitable for notebooks, smartphones, tablets, and USB hubs.
NXP NX5P3090UKZ Power Switch Specifications:
- VINT supply voltage range from 2.5 V to 5.5 V
- 29 V tolerance on VBUS and EN pins
- Adjustable current limit from 400 mA to 3.3 A using an external resistor
- Clamped current output during over-current
- Very low ON resistance of 34 mΩ (typical)
- Active HIGH EN pin with internal pull-down
- All-time reverse current protection
- Over Temperature Protection activates above 140°C
- Surge protection exceeds IEC61000-4-5 +80 V on VBUS
- Package: 12 bump wafer-level chip-scale (1.35 x 1.65 mm, 0.4 mm pitch)
- Operating temperature from -40°C to +85°C
- Peak junction temperature up to 140°C
- Device triggers fault indication via open-drain FAULT pin when protections activate

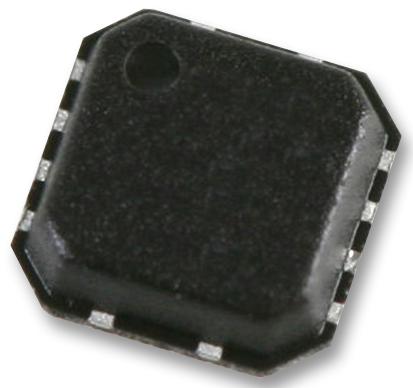

Buy the Buy NXP NX5P3090UKZ USB Power Switch Part Number NX5P3090UKZ Online
Order the NXP NX5P3090UKZ power switch online today to benefit from its adjustable current limit, surge and reverse current protections, low resistance, and compact design. Ideal for USB PD ports, smartphones, tablets, and laptops, this device guarantees safe and efficient power delivery. With robust surge and thermal protections, it maintains system stability under fault conditions. Easy to integrate in space-constrained applications, it ensures reliable operation in demanding environments. Purchase now for optimal power management and enhanced device safety.
Buy NXP NX5P3090UKZ now and ensure reliable power management for USB PD and Type C ports with advanced overload and thermal protections.
Frequently Asked Questions
Where can I buy NXP NX5P3090UKZ?
You can click on the BUY or RFQ button to purchase NX5P3090UKZ from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part NX5P3090UKZ?
You can download the NX5P3090UKZ datasheet or visit the NXP website for support.
Who is the manufacturer of NX5P3090UKZ?
NXP
