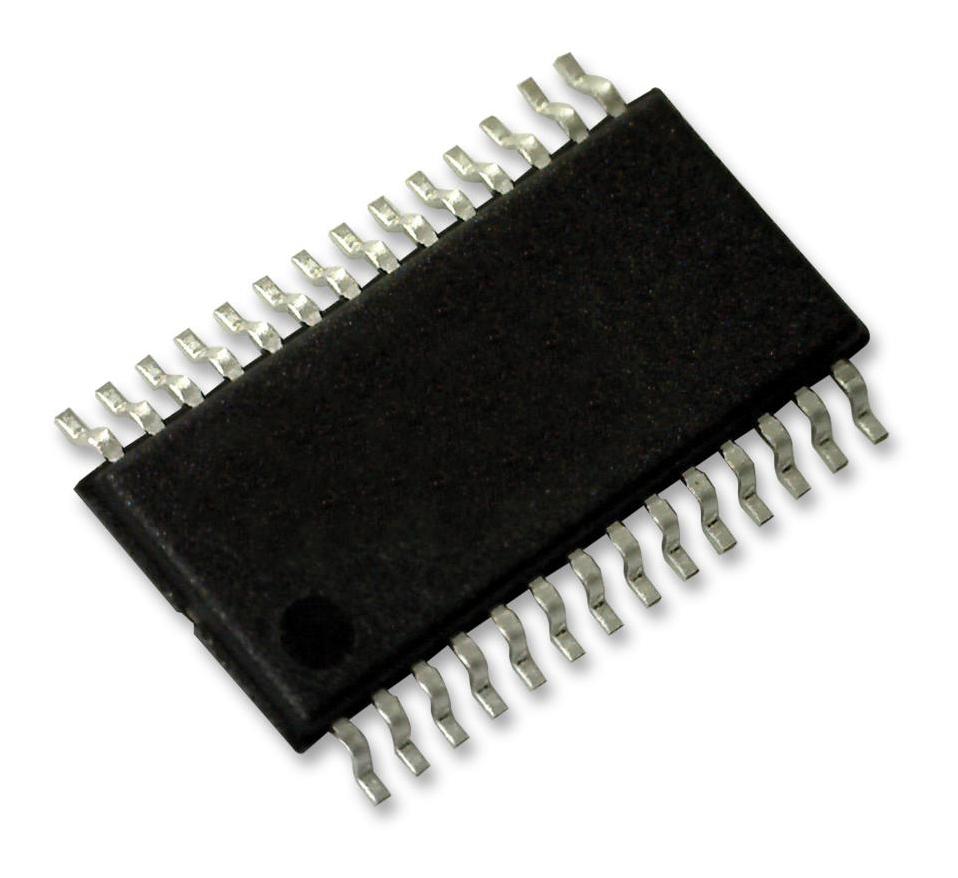

NXP MC9S08SH16CTLR Embedded Control Microcontroller
The MC9S08SH16CTLR is a high-performance 8-bit microcontroller designed for embedded control applications. Featuring 16 KB of Flash memory, 1024 bytes of RAM, and multiple communication interfaces including SCI, SPI, and IIC, it provides robust I/O capabilities with extensive pin control and debug support. Its versatile modes of operation include run, wait, and stop modes, optimized for low power consumption. The device supports a wide temperature range and includes internal peripherals like ADC, ACMP, TPM, and RTC, making it suitable for automotive, industrial, and consumer electronics.
NXP MC9S08SH16CTLR Embedded Control Microcontroller Specifications:
- Flash Memory: 16 KB
- RAM: 1024 bytes
- Package: 28-pin TSSOP/SOIC, 20-pin TSSOP, 16-pin TSSOP
- Temperature Range: -40°C to 125°C
- Supply Voltage: 2.7V to 5.5V
- Communication Interfaces: SCI, SPI, IIC
- ADC: 10-bit, up to 16 channels
- Crypto/Security: Security features for secure applications
- Operating Modes: Run, wait, stop, active background
- Internal Peripherals: ADC, ACMP, TPM, RTC, LVD
- Clock Sources: Internal FLL, external crystal, bus clock
- Debug: Single-wire background debug, breakpoint support
Buy the Freescale Series MC9S08SH16CTLR: 16 KB Flash, 1024 RAM, 8-Bit Microcontroller
Discover the powerful Freescale MC9S08SH16CTLR embedded control microcontroller. With 16 KB Flash, 1024 bytes RAM, multiple communication interfaces, and comprehensive debugging features, it’s ideal for automotive, industrial, and consumer electronics. Its versatile operation modes, including low power wait and stop modes, optimize energy efficiency. Integrated peripherals like ADC, ACMP, TPM, and RTC ensure comprehensive functionality in a compact package. Buy online today to enhance your embedded system design with reliable, secure, and flexible performance.
Get Freescale MC9S08SH16CTLR today—built for embedded control with extensive interfaces, low power modes, and robust security features.
Frequently Asked Questions
Where can I buy NXP MC9S08SH16CTLR?
You can click on the BUY or RFQ button to purchase MC9S08SH16CTLR from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MC9S08SH16CTLR?
You can download the MC9S08SH16CTLR datasheet or visit the NXP website for support.
Who is the manufacturer of MC9S08SH16CTLR?
NXP
