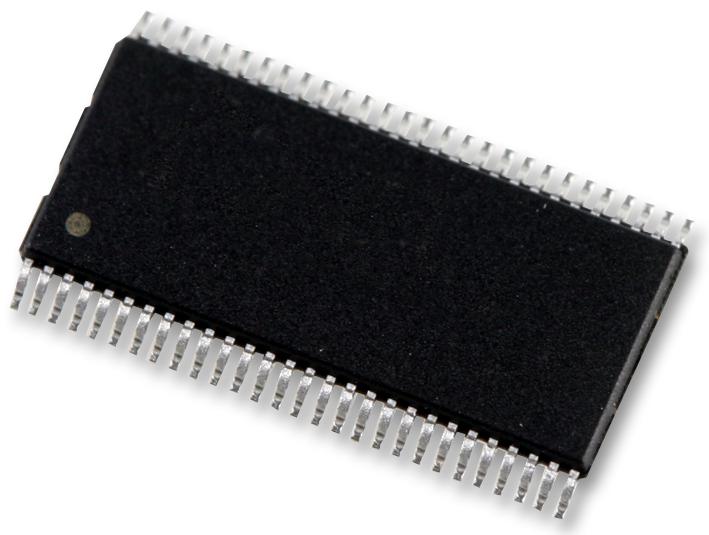

NXP PCF8576CT1518 LCD Driver Module
The PCF8576C is a versatile I2C-bus interface device for controlling LCD segments and dot matrices in various configurations. It supports up to four backplanes and 40 segments, enabling static or multiplexed LCD drive modes with internal bias generation. Suitable for microcontrollers, it provides flexible display options, low power consumption, and easy cascade implementation for large displays. Its internal bias generator and adjustable drive modes make it ideal for applications such as digital meters, industrial displays, and portable electronic devices. The device requires minimal external components and offers a range of driver configurations for efficient display control.
NXP PCF8576CT1518 LCD Driver Module Specifications:
- Supports up to 40 segments and 4 backplanes
- Supports static, 1:2, 1:3, and 1:4 multiplex modes
- Internal voltage bias generation with voltage-divider
- Operates with LCD bias voltages from Vpp - 2.0 V to Vpp - 6.0 V
- Supports I2C-bus communication at up to 100 kHz
- Display RAM: 40 x 4-bit static RAM
- Power supply voltage: 2.0 V to 6.0 V
- Supports cascaded operation up to 16 devices
- Built-in oscillator with external or internal clock options
- Powered with minimal external components, designed for low power consumption
- Package options include LQFP64 and VSO56, with pin configurations for easy PCB integration
- Operating temperature range: -40°C to +85°C
Buy the NXP PCF8576C – Reliable LCD Driver for Industrial Applications
Purchase the NXP LCD Driver Module today to ensure high-quality display control in your electronic projects. With support for multiple multiplex modes, internal bias generation, and cascaded operation, this versatile device simplifies LCD driving for industrial, medical, and portable applications. Its low power consumption, minimal external components, and flexible configuration options make it ideal for large-scale displays and energy-efficient devices. Ready for quick integration, the module guarantees reliable operation across a wide temperature range and various power supplies. Secure your stock now and upgrade your display systems effortlessly.
Order your NXP PCF8576C LCD driver today and enhance your display projects with dependable, low-power drive solutions suitable for industrial and portable devices.
Frequently Asked Questions
Where can I buy NXP PCF8576CT1518?
You can click on the BUY or RFQ button to purchase PCF8576CT1518 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part PCF8576CT1518?
You can download the PCF8576CT1518 datasheet or visit the NXP website for support.
Who is the manufacturer of PCF8576CT1518?
NXP
