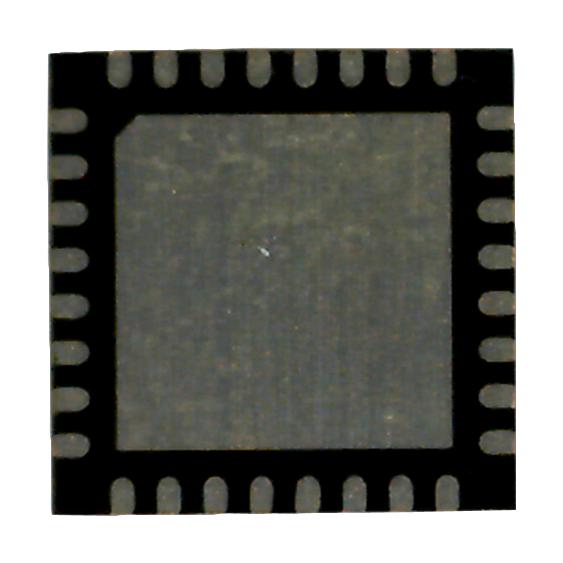

NXP PTN3361CBSMP HDMI DVI Level Shifter
The PTN3361C is a high-speed level shifter designed for converting four lanes of low-swing AC-coupled differential signals to DVI and HDMI standards supporting up to 1.65 Gbit/s per lane. It features integrated 50 Ω termination resistors, active buffering for DDC signals with rise time acceleration, HDMI dongle detection via I2C ROM, voltage translation for HPD signals, and back-power safe outputs. This device is ideal for multi-standard display systems, offering low power modes, safe operation when unpowered, and support for long cable drives, making it suitable for PC, graphics cards, and docking stations.
NXP PTN3361CBSMP HDMI DVI Level Shifter Specifications:
- Supports four differential input channels up to 1.65 Gbit/s per lane
- Differential inputs with 810-1200 mV peak-to-peak voltage and 600-4000 ps unit interval
- Differential outputs comply with HDMI 1.4b and DVI 1.0, with voltage swing of 400-600 mV
- Integrated 50 Ω termination resistors for differential inputs
- Supports rise time acceleration for DDC sink port enabling long cable drive up to 18 meters
- Active I2C-bus ROM for HDMI dongle detection responding at address 81h
- Input voltage levels: 3.3 V logic, with Vpp supply 3.0 – 3.6 V
- Back-power safe sink ports with disallowance of backdrive current when unpowered
- Package: HVQFN32, 5 x 5 x 0.85 mm, with exposed thermal pad for enhanced heat conduction
- Operating temperature: –40°C to +85°C, ESD resilience up to 6 kV HBM
- Includes configurable equalizer with three levels via EQ3 pin
- Backdrive current protection on sink-side TMDS and DDC ports
- Supports high-speed differential signaling with skew time budget of 4-10 ps
- Power consumption in active mode: 70-100 mA
