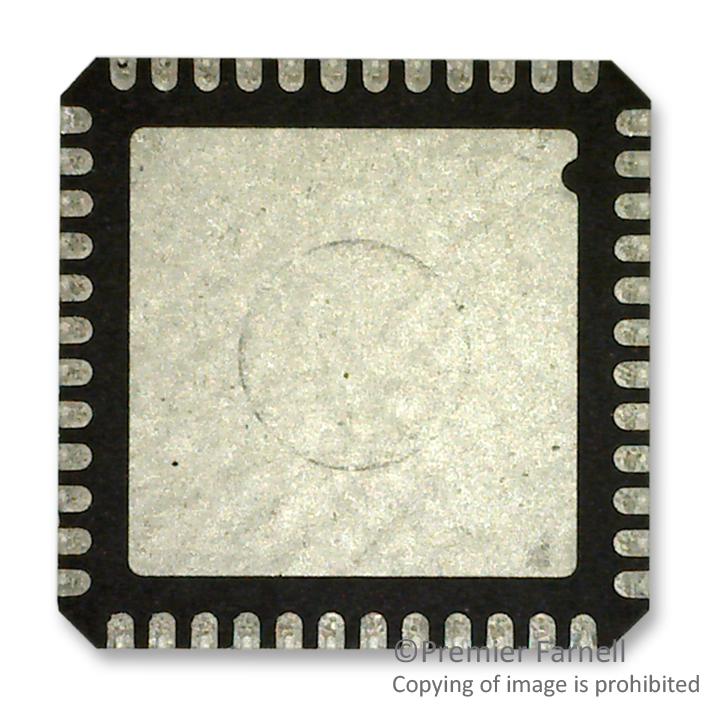

NXP MC9S08AW48CFDE 8-bit Microcontroller
The MC9S08AW48 microcontroller offers an efficient 8-bit CPU core with 49 KB of FLASH memory, 2 KB RAM, and versatile peripheral modules including ADC, UART, SPI, I2C, and timers. Designed for embedded system applications, it supports multiple low-power modes, flexible clock options, and on-chip debug capabilities. Its high-performance architecture allows precise control and reliable operation across a wide temperature range, making it suitable for automotive, industrial, and consumer electronics where system robustness and energy efficiency are critical.
NXP MC9S08AW48CFDE 8-bit Microcontroller Specifications:
- Flash Memory: 49,152 bytes (96 pages of 512 bytes)
- RAM: 2,048 bytes
- Package Options: 48-pin QFN, 48-pin QFP, 44-pin TQFP
- Clock Frequency: Up to 40 MHz bus frequency, with internal oscillator options
- Peripheral Modules: ADC 8 channels, UART (SCI) 2 modules, SPI, I2C, Timers (TPM) 2 channels
- I/O Pins: 38 general-purpose pins with software-controlled pullups, slew rate, and drive strength
- Low Power Modes: Wait, Stop2, Stop3 (optional circuitry for minimal power consumption)
- Debug Interface: Single-wire background debug, with hardware breakpoints and bus trace buffers
- Temperature Range: -40°C to 85°C
- Supply Voltage: 2.7V to 5.5V
- Endurance: Flash 100,000 write/erase cycles, data retention over 10 years
Buy the Freescale Series MC9S08AW48 Flash Microcontroller: MC9S08AW48CFDE
Purchase the Freescale Series MC9S08AW48 microcontroller online today and unlock a versatile embedded solution featuring 49 KB of FLASH, 2 KB RAM, dual UARTs, SPI, I2C, multiple timers, and low-power modes. Ideal for automotive, industrial, and consumer electronics, this high-performance device offers robust system control, flexible clock options, and on-chip debugging. Secure your project with proven reliability, energy efficiency, and extensive peripheral support—order now and accelerate your development process with this powerful MC9S08 series MCU.
Order your Freescale Series MC9S08AW48CFDE microcontroller today and benefit from reliable performance, flexible peripherals, and low-power operation ideal for industrial and automotive designs.
Frequently Asked Questions
Where can I buy NXP MC9S08AW48CFDE?
You can click on the BUY or RFQ button to purchase MC9S08AW48CFDE from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MC9S08AW48CFDE?
You can download the MC9S08AW48CFDE datasheet or visit the NXP website for support.
Who is the manufacturer of MC9S08AW48CFDE?
NXP
