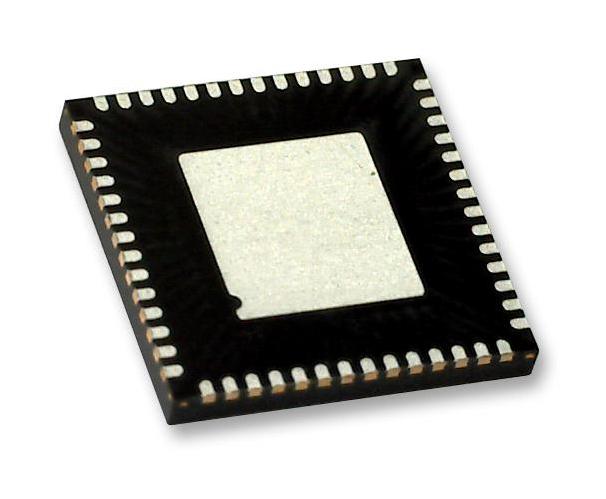

NXP PTN3460BSF4Y DisplayPort LVDS Bridge
The PTN3460 is an embedded DisplayPort to LVDS bridge IC designed for seamless connectivity between embedded DisplayPort sources and LVDS display panels. It supports 2-lane or 1-lane DP operation at link rates of 1.62 Gbit/s or 2.7 Gbit/s, with pixel clock frequencies up to 112 MHz. The device processes DP streams, performs protocol conversion, and transmits LVDS data in formats aligned with VESA or JEIDA standards. Features include integrated microcontroller, firmware update capability, EDID emulation, power sequencing control, and support for high-speed AUX channels, making it adaptable for various embedded display applications.
NXP PTN3460BSF4Y DisplayPort LVDS Bridge Specifications:
- Supports DP link rates of 1.62 Gbit/s and 2.7 Gbit/s with 1 or 2 lanes
- Pixel clock frequency up to 112 MHz with 18 or 24 bits per pixel
- Supports single and dual LVDS bus configurations, VESA or JEIDA formats
- Supports EDID 1.3 and emulation of EDID ROM with seven data structures
- Powered by 3.3 V or dual 3.3 V/1.8 V supplies with internal regulator
- Package: HVQFN56 (7 mm x 7 mm, 0.4 mm pitch), thermal relief center pad
- Integrated microcontroller for firmware updates and configuration
- Support for advanced features like LS spreading, high-performance receive EQ, CDR, and flexible power sequencing
- Compliance with DP v1.2, eDP v1.2 standards, and LVDS ANSI/TIA/EIA-644-A-2001
- Supports DP AUX channel transactions, EDID and DDC control, and system power management
- Operating temperature: 0°C to 70°C, storage temperature: -65°C to 150°C
- Electrostatic discharge immunity: 8 kV HBM, 1 kV CDD
