NXP PCA9545AD118 4-Channel I2C Switch
The PCA9545A/45B/45C is a versatile 4-channel I2C-bus switch with interrupt logic and reset capabilities. It supports voltage level translation, hot insertion, and power-up reset, making it suitable for complex multi-voltage systems. The device features active LOW interrupt inputs and an active LOW reset input, with up to 4 address pins for system scalability. It provides glitch-free channel switching, low Ron switches, and protections against ESD and latch-up. Its compact packages include HVQFN20, TSSOP20, and SO20, optimized for surface mounting and thermal management.
NXP PCA9545AD118 4-Channel I2C Switch Specifications:
- Support for I2C-bus, SMBus standards operating up to 400 kHz.
- Voltage supply range from 2.3 V to 5.5 V, Vpp from 2.7 V to 5.5 V.
- Active LOW interrupt inputs with external pull-ups, one active LOW interrupt output.
- Support for hot insertion, low standby current, and glitch-free switching.
- Power-on reset ensures default channel deselection at startup.
- Pass gates constructed for voltage level translation with maximum Vpp of 5.5 V.
- Built-in ESD protection exceeding 2000 V HBM, latch-up protection over 100 mA.
- Package options include HVQFN20, TSSOP20, SO20, optimized for surface mounting.
- Maximum junction temperature 125°C, operating temperature from -40°C to +85°C.
- Physical dimensions vary per package, with thermal considerations for HVQFN20.

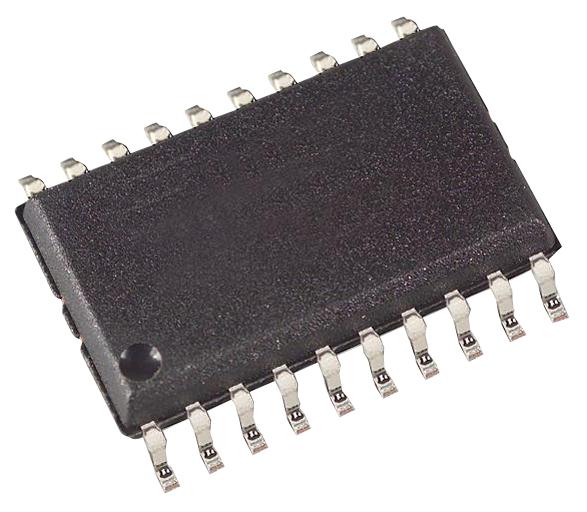

Buy the Buy NXP PCA9545A Part Number PCA9545AD118 Online
