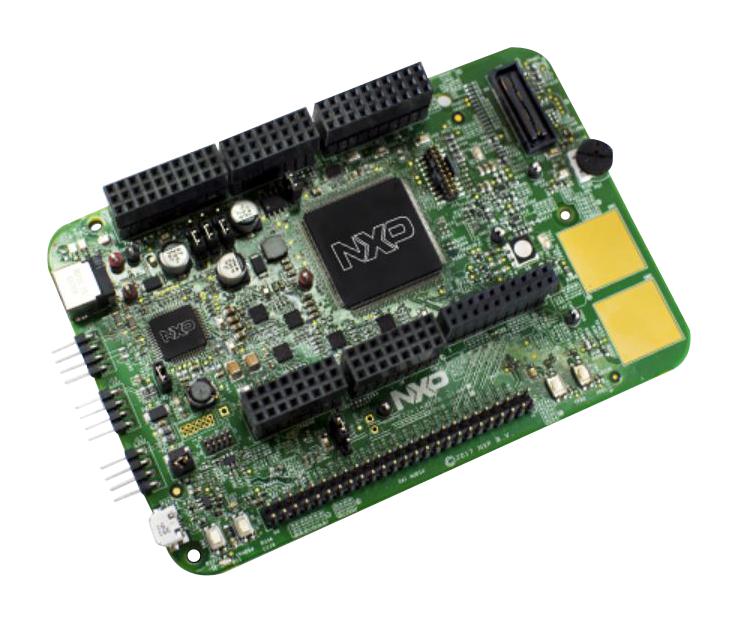

NXP S32K148EVBQ176 Embedded Development Board
The S32K148EVB development platform supports S32K148 microcontrollers with a 176-pin LQFP socket, Arduino™ footprint compatibility, and integrated OpenSDA serial/debug adapter. Features include accessible MCU I/O, Ethernet and QuadSPI interfaces, CAN, LIN, UART connections, onboard external flash, RGB LED, push-buttons, touch electrodes, and voltage options for 3.3V or 5V, powered via USB or external supply. Ideal for embedded development, prototyping, and debugging with its flexible connectivity and expansion options, enhancing rapid application deployment and system testing.
NXP S32K148EVBQ176 Embedded Development Board Specifications:
- Supports $32K148 176LQFP socket
- Arduino™ UNO compatible footprint
- Integrated OpenSDA serial and debug adapter
- On-chip connectivity: CAN, LIN, UART/SCI
- External flash memory MX25L6433F onboard
- Supports Ethernet and QuadSPI (mutually exclusive)
- Voltage supply options: 3.3V or 5V via USB or external power
- Onboard RGB LED, push-button switches, touch electrodes
- Power options include microUSB and external 12V supply
- Supports easy access to all MCU I/O for prototyping
- Includes external components: SMB UJA1132, external memory
- Debug interface supported through integrated OpenSDA
Buy the Buy NXP S32K148EVB Part Number S32K148EVBQ176 Online
Discover the NXP S32K148EVB development board, designed for advanced embedded system prototyping. Features include Arduino compatibility, Ethernet and QuadSPI for external memory, integrated OpenSDA for debugging, CAN, LIN, UART interfaces, onboard external flash, RGB LED, push-buttons, touch electrodes, and versatile power options. This platform simplifies development, testing, and debugging for microcontroller applications, offering accessible I/O headers, flexible connectivity, and robust features suitable for industrial, automotive, and IoT projects. Purchase online today for efficient embedded design and testing.
Get NXP S32K148EVBQ176 today—built for rapid development, prototyping, and reliable debugging with integrated Ethernet and QuadSPI interfaces.
Frequently Asked Questions
Where can I buy NXP S32K148EVBQ176?
You can click on the BUY or RFQ button to purchase S32K148EVBQ176 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part S32K148EVBQ176?
You can download the S32K148EVBQ176 datasheet or visit the NXP website for support.
Who is the manufacturer of S32K148EVBQ176?
NXP
