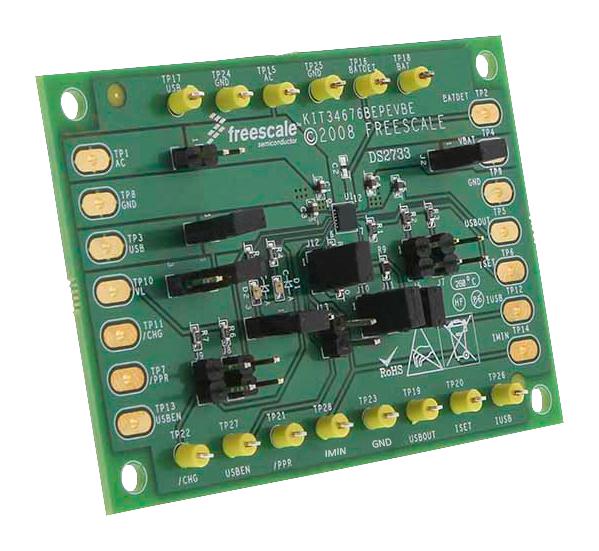

NXP KIT34676EPEVBE Li-ion Battery Charger Module
The KIT34676EPEVBE is an evaluation module designed for the 34676 battery management IC. It features dual 28V input voltages optimized for USB charging and AC/DC power sources, eliminating the need for external power selection circuitry. The module includes two independent charger controllers, each capable of managing charge currents up to 1.2A for AC and 400mA for USB, with programmable end-of-charge current settings. It supports fully integrated single-cell Li-Ion battery charging with high voltage accuracy (±0.7%) and current accuracy (±5%) across wide temperature ranges. Additionally, a 4.85V regulator is included for powering subsystems. The module requires no external MOSFETs, reverse blocking diodes, or current sense resistors, simplifying design and integration. Suitable for consumer electronics and portable devices, it comes as an assembled and tested evaluation board in an anti-static package, along with documentation.
NXP KIT34676EPEVBE Li-ion Battery Charger Module Specifications:
- Dual 28V input voltages for USB and AC/DC power sources
- Charge current capacity up to 1.2A (AC) and 400mA (USB)
- Programmable end-of-charge current via external resistor
- Constant voltage accuracy: ±1.0% over -40 to 85°C
- Constant current accuracy: ±5% over -40 to 85°C
- High voltage regulation capability up to 4.2V
- Integrated 4.85V voltage regulator for system power
- No external MOSFETs, reverse blocking diodes, or sense resistors needed
- Supports single-cell Li-ion battery charging
- Operates over wide temperature range
- Evaluation board includes component, layout, testing points, and documentation
Buy the Freescale Series Lithium-Ion Charger: KIT34676EPEVBE
Enhance your portable device charging system with the Freescale KIT34676EPEVBE. This evaluation module offers dual 28V input capability, independent high-current chargers, and programmable settings for optimal battery management. Designed for ease of integration, it requires no external MOSFETs or sense resistors, reducing complexity and cost. Ideal for consumer electronics, it ensures precise voltage and current control across wide temperature ranges. Purchase online today to streamline your design with this comprehensive, tested lithium-ion charging solution.
Buy Freescale KIT34676EPEVBE now and experience seamless dual-input lithium-ion battery charging with highly accurate, reliable performance.
Frequently Asked Questions
Where can I buy NXP KIT34676EPEVBE?
You can click on the BUY or RFQ button to purchase KIT34676EPEVBE from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part KIT34676EPEVBE?
You can download the KIT34676EPEVBE datasheet or visit the NXP website for support.
Who is the manufacturer of KIT34676EPEVBE?
NXP
