NXP STARXLS08 Development Board

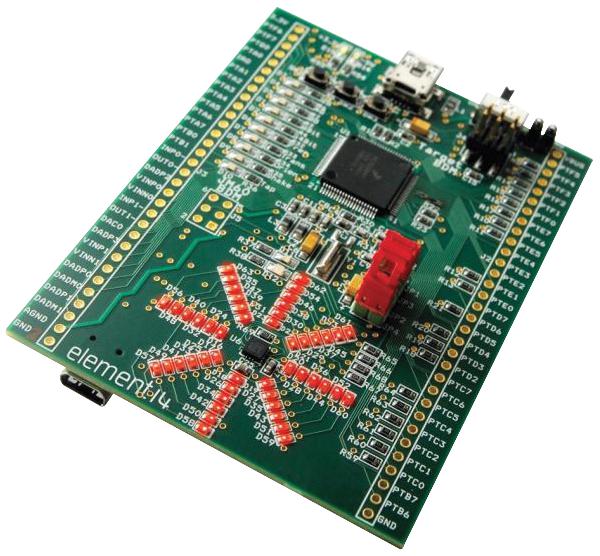

The STAR-XL-S08 development board features the MC9S08MM128 8-bit microcontroller and integrates multiple sensors and interfaces in a compact, double-sided design. It includes an MMA8451Q three-axis accelerometer, a MC34673 battery charger, and an open-source BDM interface for programming and debugging. The board offers a user-friendly environment for demonstration and evaluation of sensor applications, including orientation, shake, tap, freefall, and transient mode, with adjustable sensitivities and data resolutions (8-bit and 14-bit). It automatically switches between sleep and wake modes based on movement, optimizing power consumption. The XL_STAR is suitable for medical, test and measurement, sensing, industrial, consumer electronics, and embedded development applications. It provides a comprehensive development platform with high GPIO count, extensive flash and SRAM memory, low power operation, and USB connectivity. The kit includes the XL-STAR board, battery, USB cable, and CodeWarrior special edition IDE. For USB development, the board must be powered via the specified USB connection before connecting the USB cable for data transfer. Caution should be taken when updating firmware to avoid rendering the device unusable.
NXP STARXLS08 Development Board Specifications:
- Microcontroller: MC9S08MM128 8-bit, 128K Flash, low power operation
- Sensor: MMA8451Q three-axis accelerometer, 14/8-bit, adjustable sensitivities
- Interfaces: USB connectivity, open-source BDM, extensive GPIO
- Design: Double-sided, compact PCB with modular components
- Power: Battery powered, automatic sleep/wake modes for energy efficiency
- Memory: Flash memory and SRAM for embedded applications
- Kit contents: XL-STAR development board, lithium-ion battery, USB cable, CodeWarrior IDE
- Supported for: sensor demonstration, orientation, shake, tap, freefall detection
- Operating conditions: Suitable for medical, industrial, consumer electronics, testing
- Connectivity: USB support for programming and data transfer, requires USB power before connection
- Compatibility: Designed for low power embedded sensor and measurement systems
Buy the Freescale Series XL_STAR MC9S08MM128: STARXLS08
Enhance your sensor and embedded systems development with the versatile XL-STAR board featuring the MC9S08MM128 microcontroller and multiple interfaces. This compact, double-sided platform includes a 14/8-bit three-axis accelerometer, USB connectivity, and a BDM debugging interface, making it ideal for demonstrations, testing, and industrial applications. With extensive GPIO, programmable power modes, and integrated memory, it supports medical, sensing, consumer, and industrial projects. Easily connect via USB for programming and data transfer, providing reliable performance and comprehensive tools for your development needs.
Buy Freescale Series XL_STAR MC9S08MM128 now and experience unmatched reliability and performance in sensor development and embedded applications.
