NXP BB175X VHF Variable Capacitance Diode
The BB175 is a high-linearity, ultra-small VHF variable capacitance diode designed for voltage-controlled oscillators. Encapsulated in a compact SOD523 package, it features a capacitance range of 52 to 62 pF at 1 MHz, with a capacitance ratio of 22 between 1 V and 28 V. It exhibits very low reverse current and series resistance, making it ideal for high-frequency tuning applications. Its robust construction ensures reliable operation within a junction temperature of -55°C to +125°C, with a reverse voltage rating of 32 V. Suitable for RF, communication, and VCO designs, it provides consistent performance in demanding environments.
NXP BB175X VHF Variable Capacitance Diode Specifications:
- Capacitance: 52 to 62 pF at 1 MHz
- Capacitance Ratio: 22 (1 V to 28 V)
- Reverse Voltage: 32 V
- Peak Reverse Voltage (series resistor): 35 V
- Forward Current: 20 mA
- Storage Temperature: -55°C to +150°C
- Junction Temperature: -55°C to +125°C
- Reverse current at 30 V: <10 nA at 25°C, <200 nA at 85°C
- Series Resistance: 10 to 12 Ω at 100 MHz

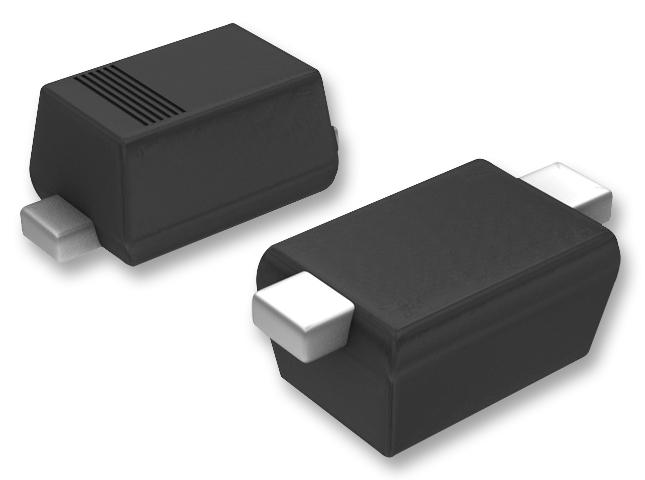

- Package Type: SOD523 (SC-79) surface-mounted package
Buy the Buy NXP BB175 VHF Variable Capacitance Diode Part Number BB175X Online
Purchase the NXP BB175 VHF variable capacitance diode online today and experience high linearity and low series resistance in compact SOD523 packages. Ideal for RF tuning, communication systems, and voltage-controlled oscillators, this diode offers a capacitance range of 52 to 62 pF with a capacitance ratio of 22 between 1 V and 28 V. Its robust construction ensures reliable operation from -55°C to +125°C, supporting demanding high-frequency applications with minimal reverse current and exceptional stability—perfect for modern electronic and RF design needs.
Get NXP BB175 VHF variable capacitance diode today—designed for high-frequency tuning, RF applications, and reliable VCO performance.
