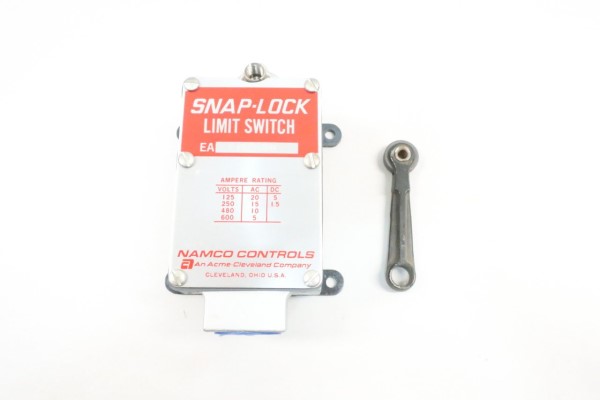

Namco Controls EA17022100 Industrial Limit Switch
This industrial limit switch features double pole double throw (DPDT) contacts and is designed for reliable machinery control and position detection. It offers mechanical travels of 10', 6', or 10°/6° depending on the series, with adjustable operating levers across multiple angles for flexible installation. Encased in a durable die-cast zinc housing, it meets NEMA 1, 4, and 13 standards, ensuring watertight, oil, and dust resistance. The switch supports high-temperature options up to +150°C, with ample wiring space for up to size 12 wires, making it suitable for various industrial environments including geothermal applications.
Namco Controls EA17022100 Industrial Limit Switch Specifications:
- Mechanical travel options: 10', 6', or 10°/6° with reverse shaft options for flexible installation
- Housing: Die-cast Zinc with corrosion resistance
- Enclosure standards: NEMA 1, 4 & 13, watertight, dust & oil resistant
- Contacts: Silver alloy, DPDT configuration
- Temperature Range: -20°C to + 150°C (high temperature options available), standard -20°C to + 90°C
- Operating lever: Adjustable in 7°30’ increments, standard travel 167°, short travel 173°, reverse shaft 360°
- Wiring space: For up to size 12 wire, accessible terminal screws
- Weight: Approx. 3.5 lbs.
- Mounting styles: Standard, Wide, Long with various shaft options
- Certifications: Meets NEMA standards, optional sealed and extreme environment configurations
- Speed & torque settings: Max torque and travel specifications provided for precise adjustment
- Shaft configurations: Standard, Wide, Long for front or reverse shaft mounting
- Product variations: Multiple enclosure and switch position options for diverse industrial needs
Buy the Buy Industrial Control Switch Parts Product Variation EA17022100 Online
Secure the reliable operation of your machinery with the Industrial Limit Switch. This DPDT control component features durable zinc housing, adjustable travel, and versatile mounting options. Perfect for demanding industrial environments, it offers high-temperature variants, watertight and dustproof enclosures, and ample wiring space. Whether you need standard, wide, or long mounting styles, this switch ensures precise detection and reliable switching. Upgrade your controls now to enhance safety, efficiency, and operational consistency in your industrial applications.
Buy Industrial Control Switch Parts EA17022100 now and experience unmatched reliability and high-performance in machinery control.
Frequently Asked Questions
Where can I buy Namco Controls EA17022100?
You can click on the BUY or RFQ button to purchase EA17022100 from an authorized Namco Controls distributor.
How do I troubleshoot issues or seek technical support for part EA17022100?
You can download the EA17022100 datasheet or visit the Namco Controls website for support.
Who is the manufacturer of EA17022100?
Namco Controls
