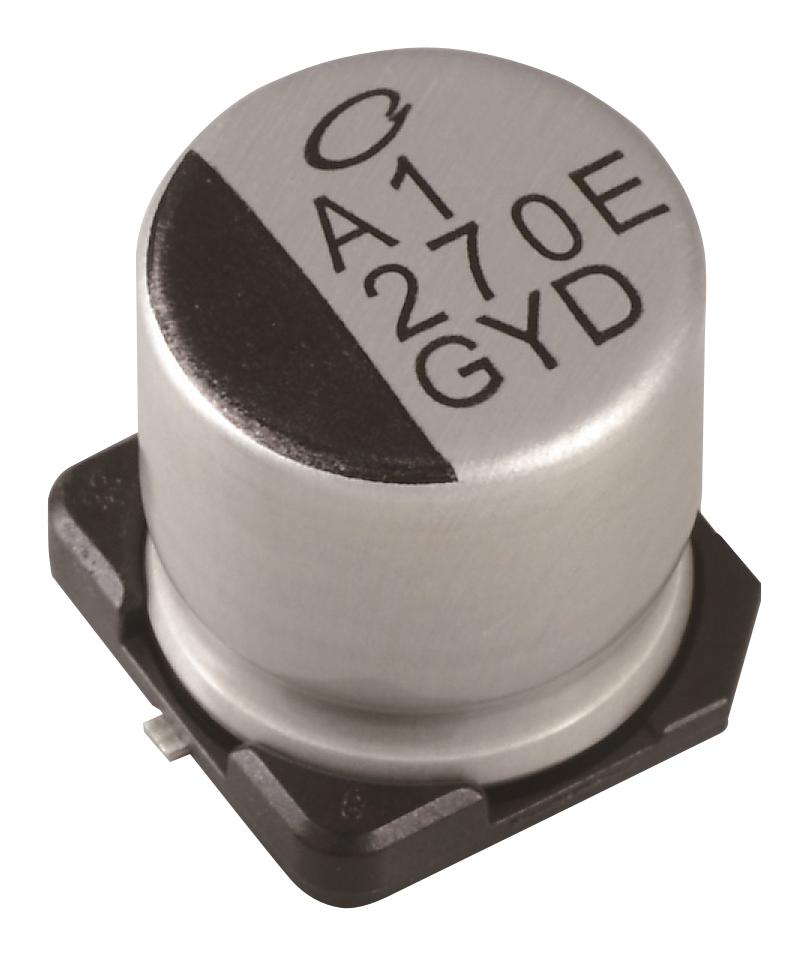

Nichicon GYD1E151MCW1GS High-Temperature Aluminum Capacitor
Nichicon's high-reliability conductive polymer hybrid aluminum electrolytic capacitors are designed for industrial applications requiring durability at high temperatures. Operating between -55°C and +150°C, these capacitors feature low ESR, high ripple current, and a long life of 1000 hours at 150°C. Suitable for demanding environments, they meet RoHS and AEC-Q200 standards. With a capacitance range of 100 to 270μF, rated voltages from 25 to 35V, and robust construction, they offer stable performance for power supply filtering, automotive, and industrial electronics.
Nichicon GYD1E151MCW1GS High-Temperature Aluminum Capacitor Specifications:
- Category Temperature Range: -55°C to +150°C
- Rated Voltage Range: 25V to 35V
- Rated Capacitance Range: 100μF to 270μF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
- Leakage Current: ≤0.01CV (μA) after 2 minutes at rated voltage, 20°C
- Impedance Ratio (Z-25°C / Z+20°C): <2
- Impedance Ratio (Z-55°C / Z+20°C): ≤2.5 at 100kHz, 20°C
- Endurance: 1000 hours at 150°C with ripple current, capacitance within ±30% of initial
- Shelf Life: stored 1000 hours at 150°C, then tested at 20°C, meets specs
- Resistance to Soldering Heat: 30 sec at 250°C, capacitance change ≤10%, leakage current within initial
Buy the Nichicon GYD1E151MC – Reliable Aluminum Electrolytic Capacitors for Industrial Applications
Secure your projects with Nichicon high-temperature aluminum electrolytic capacitors. Designed for long life at 150°C, these capacitors feature low ESR and high ripple current. Suitable for power supplies, automotive electronics, and industrial equipment, they meet RoHS and AEC-Q200 standards. Easy to install and reliable under harsh conditions, these capacitors ensure stable operation and durability. Purchase now online to benefit from quick delivery and expert support, making your manufacturing process seamless and dependable at an excellent value.
Buy Nichicon GYD1E151MC now and experience unmatched reliability and high-temperature performance for demanding industrial electronics.
