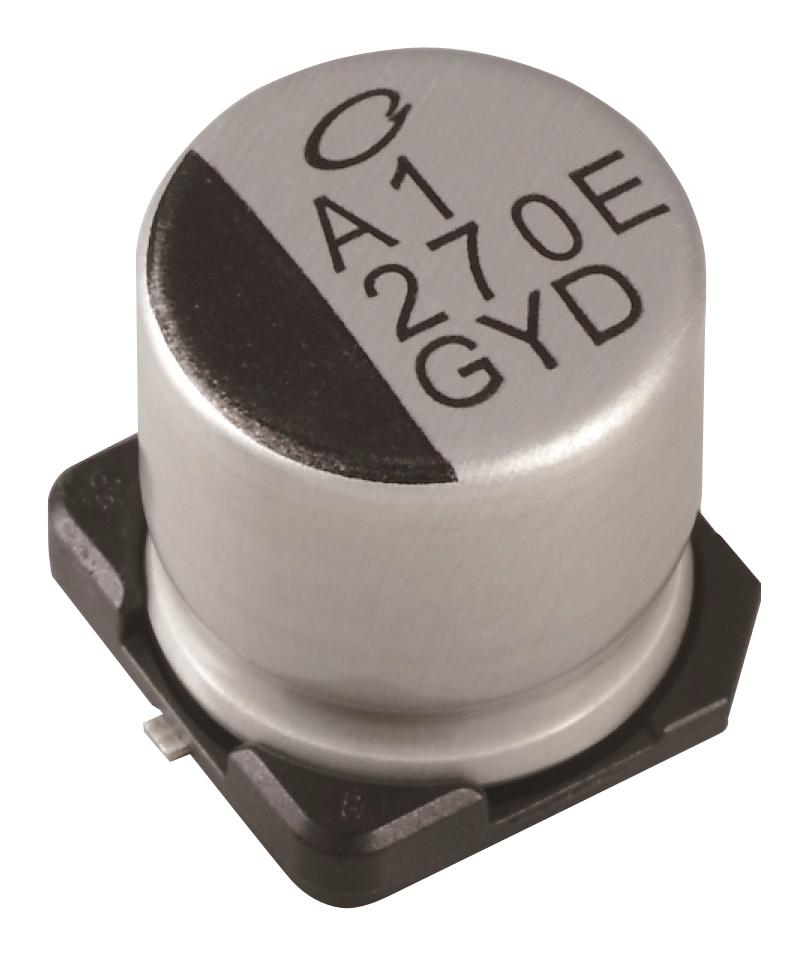

Nichicon GYD1E271MCW1GS Aluminum Electrolytic Capacitor
Nichicon's conductive polymer hybrid aluminum electrolytic capacitors are designed for high reliability and low ESR, suitable for high-temperature environments up to 150°C. These capacitors feature low leakage current, high ripple current capacity, and long life cycles of 1000 hours at 150°C. They meet RoHS and AEC-Q200 standards, ensuring environmental compliance and automotive quality. With several capacitance and voltage options, they serve applications requiring stable performance under demanding conditions, including damping heat, vibration resistance, and long-term stability in electronic devices and industrial equipment.
Nichicon GYD1E271MCW1GS Aluminum Electrolytic Capacitor Specifications:
- Category Temperature Range: -55°C to +150°C
- Rated Voltage Range: 25V to 35V
- Rated Capacitance Range: 100μF to 270μF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
- Tan δ (Loss Angle): Rated at 120Hz, 20°C
- ESR: ≤ specified value at 100kHz, 20°C
- Leakage Current: ≤ 0.01CV or specified value after 2 minutes at rated voltage, 20°C
- Impedance Ratio: Z-25°C /Z+20°C < 2, Z-55°C /Z+20°C ≤ 2.5 (100kHz)
- Capacitance Change: Within ±30% of initial value (Steady State)
- Endurance: 1000 hours at 150°C with specified ripple current, capacitance variation within ±30%, ESR ≤ 200% initial, leakage current ≤ initial
- Shelf Life: Maintains specified values after 1000 hours at 150°C then reconditioned at 20°C
- Damp Heat Resistance: 2000 hours at 85°C, 85% RH, capacitance within ±30%, leakage current ≤ initial
- Soldering Resistance: 30 seconds at 250°C, capacitance and leakage current within ±10% of initial values
Buy the Buy Nichicon Conductive Polymer Hybrid Aluminum Electrolytic Capacitors Part Number GYD1E271MCW1GS Online
Experience the reliability of Nichicon's aluminum electrolytic capacitors, designed for high-temperature applications up to 150°C. These units feature low ESR, high ripple current, and extended lifespans of 1000 hours at 150°C. Perfect for industrial, automotive, and electronics projects, they meet RoHS and AEC-Q200 standards, ensuring compliance and durability. Their robust design resists damp heat, vibration, and soldering heat, making them ideal for demanding environments. Purchase online today to secure dependable, high-performance capacitors for your machinery and devices.
Order your Nichicon Series GYD1E271MCW1GS high-temperature electrolytic capacitor today and ensure your electronic projects benefit from their exceptional reliability and performance.
