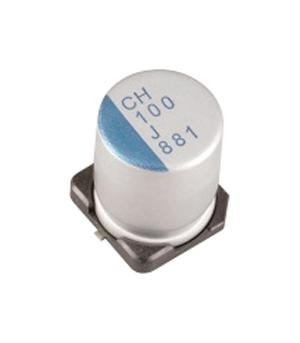

Nichicon PCH1D331MCL1GS Conductive Polymer Aluminum Capacitor
These high-reliability conductive polymer aluminum solid electrolytic capacitors are designed for applications requiring high voltage up to 80V, low ESR, and high ripple current. They feature a long life of 4000 hours at 135°C, are compliant with RoHS and AEC-Q200 standards, and exhibit excellent electrical characteristics such as stable capacitance, low leakage current, and robust temperature variability from -55°C to +135°C. Suitable for SMD reflow soldering, these capacitors ensure dependable performance in demanding electronic circuits and industrial equipment.
Nichicon PCH1D331MCL1GS Conductive Polymer Aluminum Capacitor Specifications:
- Category Temperature Range: -55°C to +135°C
- Rated Voltage Range: 16V to 80V
- Rated Capacitance Range: 12uF to 1000uF
- Capacitance Tolerance: ±20% at 120Hz, 20°C
- ESR: Less than or equal to the specified value at 100kHz, 20°C
- Leakage Current: ≤ 0.03CV or 3μA after 2 min at rated voltage
- Maximum Impedance at -55°C / +20°C: 1.25 times (100kHz)
- Capacitance Change after Endurance: Within ±20% of initial, at 135°C for 4000 hours
- Soldering: Reflow at 260°C with pre-heating at 150-200°C for 60-180 sec, peak temp ≤ 260°C
- Resistance to Soldering Heat: Meets specifications after solder process
- Compliance: RoHS (2011/65/EU, 2015/863), AEC-Q200
- Physical: SMD type, case size varies with capacitance and voltage
- Application: Power supply smoothing, automotive electronics, industrial circuits
Buy the Buy Nichicon Conductive Polymer Aluminum Capacitors Part Number PCH1D331MCL1GS Online
Purchase Nichicon Conductive Polymer Aluminum Capacitors, Model PCH1D331MCL1GS, featuring 330uF capacity at 35V, high ripple current, and long lifespan. Ideal for power supply filtering, automotive, and industrial electronics. These surface-mount capacitors are RoHS compliant, support reflow soldering at 260°C, and meet the rigorous standards of AEC-Q200. Ensure your electronic systems operate with maximum reliability using this durable, low-ESR, high-voltage capacitor designed for demanding thermal and electrical conditions. Buy online now for swift delivery and exceptional performance.
Buy Nichicon PCH1D331MCL1GS now and experience unmatched reliability and high performance in demanding electronic environments.
Frequently Asked Questions
Where can I buy Nichicon PCH1D331MCL1GS?
You can click on the BUY or RFQ button to purchase PCH1D331MCL1GS from an authorized Nichicon distributor.
How do I troubleshoot issues or seek technical support for part PCH1D331MCL1GS?
You can download the PCH1D331MCL1GS datasheet or visit the Nichicon website for support.
Who is the manufacturer of PCH1D331MCL1GS?
Nichicon
