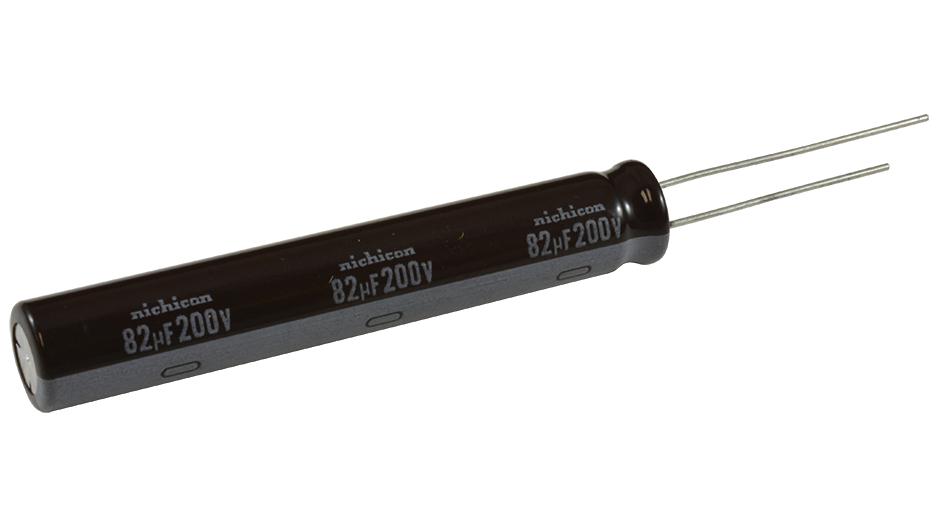

Nichicon UCS2D820MND9 Aluminum Electrolytic Capacitors
These high-reliability aluminum electrolytic capacitors are suited for ballast and power supply applications. Featuring a voltage range of 160V to 450V and capacitance of 6.8 to 330UF, they excel in long-life operation with a load life of up to 10,000 hours at +105°C. Their compact radial lead design complies with RoHS standards, ensuring environmentally friendly performance. Suitable for demanding electronic circuits, they maintain stability at low temperatures and exhibit low impedance, making them ideal for industrial and appliance use. Marked with white letters on dark brown sleeves for easy identification.
Nichicon UCS2D820MND9 Aluminum Electrolytic Capacitors Specifications:
- Category Temperature Range: -40°C to +105°C (160V to 400V), -25°C to +105°C (450V)
- Rated Voltage Range: 160V to 450V
- Rated Capacitance Range: 6.8UF to 330UF
- Capacitance Tolerance: 20% at 120Hz, 20°C
- Leakage Current: Not more than 0.04CV + 100 (A) after 1 minute at 20°C
- tan δ (loss angle): Max 0.20 at rated voltage (160-250V), max 0.24 at higher voltages
- Impedance Ratio: Typical 2Ω/220 (MAX) at 120Hz at 20°C
- Endurance: 10,000 hours at 105°C with ripple current
- Shelf Life: Stored at 105°C for 1000 hours, then tested at 20°C to meet specified values
- Size Code: 32, Radial Lead, Marked with white letters on dark brown sleeve
Buy the Buy Nichicon Aluminum Electrolytic Capacitors Part Number UCS2D820MND9 Online
Purchase Nichicon aluminum electrolytic capacitors online for dependable power filtering and energy storage. Designed for high ripple current, long operational life, and stable performance across a wide temperature range. Ideal for ballast, industrial electronics, and power supply units, these capacitors meet RoHS compliance and feature robust construction with a compact radial lead design. Secure your supply chain with quick online ordering and benefit from product reliability, accurate specifications, and excellent endurance for demanding electrical environments, ensuring uninterrupted operation and long-term durability.
Buy Nichicon UCS2D820MND9 now and experience unmatched reliability and performance in high-capacity applications requiring long life and stability.
Frequently Asked Questions
Where can I buy Nichicon UCS2D820MND9?
You can click on the BUY or RFQ button to purchase UCS2D820MND9 from an authorized Nichicon distributor.
How do I troubleshoot issues or seek technical support for part UCS2D820MND9?
You can download the UCS2D820MND9 datasheet or visit the Nichicon website for support.
Who is the manufacturer of UCS2D820MND9?
Nichicon
