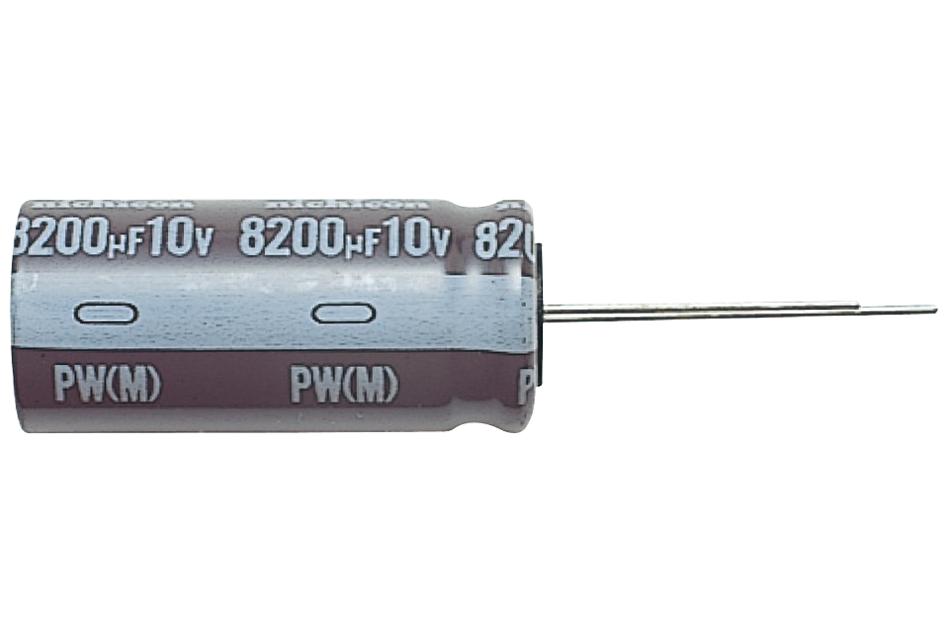

Nichicon UPW1E151MPD1TD Aluminum Electrolytic Capacitors
High-capacity aluminum electrolytic capacitors designed for switching power supplies, offering low impedance, high reliability, and long life up to 8000 hours. These capacitors operate within a temperature range from -40°C to +105°C and feature rated voltages from 6.3V to 450V. They comply with RoHS and AEC-Q200 standards, ensuring environmental safety and quality. Capacitance values range from 0.47μF to 15000μF with ±20% tolerance at 120Hz/20°C. Suitable for high-performance applications requiring durability, stability at low temperatures, and robust ripple current handling.
Nichicon UPW1E151MPD1TD Aluminum Electrolytic Capacitors Specifications:
- Category Temperature Range: -40°C to +105°C
- Rated Voltage Range: 6.3V to 450V
- Rated Capacitance Range: 0.47μF to 15000μF
- Capacitance Tolerance: +20% at 120Hz/20°C
- Leakage Current: ≤ 0.03CV or 4μA after 1 minute at 20°C
- Ripple Current: up to 8000 hours durability at 105°C
- Impedance (20°C / 100kHz): varies with size, e.g., 5x11mm size 0.60Ω max
- Dimensions: size vary from 5mm x 7mm to 35mm x 50mm
- Compliance: RoHS, AEC-Q200
- Temperature Stability: Low impedance and high reliability, retaining performance at low temperature (-40°C)
- Leakage Current: within specified limits after rated voltage application
Buy the Buy Nichicon Aluminum Electrolytic Capacitors Part Number UPW1E151MPD1TD Online
Order Nichicon Aluminum Electrolytic Capacitors part number UPW1E151MPD1TD online today and enjoy fast delivery, competitive prices, and trust in proven quality. These capacitors are ideal for high-performance power supplies, offering long life, low impedance, and excellent stability across a wide temperature range. With compliance to RoHS and AEC-Q200, they ensure safety, durability, and environmentally friendly standards. Perfect for demanding electronic applications requiring reliable energy storage, ripple current handling, and temperature resilience, making your project efficient and robust.
Buy Nichicon UPW1E151MPD1TD now and experience unmatched reliability and high performance in switching power supply applications.
Frequently Asked Questions
Where can I buy Nichicon UPW1E151MPD1TD?
You can click on the BUY or RFQ button to purchase UPW1E151MPD1TD from an authorized Nichicon distributor.
How do I troubleshoot issues or seek technical support for part UPW1E151MPD1TD?
You can download the UPW1E151MPD1TD datasheet or visit the Nichicon website for support.
Who is the manufacturer of UPW1E151MPD1TD?
Nichicon
