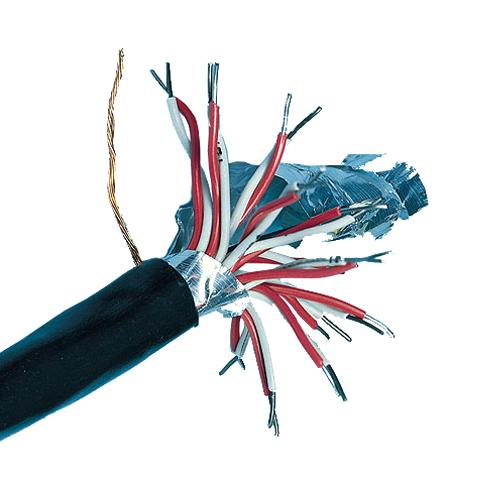

OMEGA 12KX20PP Multipair Extension Cable
This multipair extension cable features twisted pairs with individual polyvinyl jackets, shielded with aluminum-backed polyester film, and a protective polyvinyl outer jacket. It includes a stranded tinned-copper drain wire for grounding and shield termination, with color-coded pairs for easy identification. Designed for industrial use, it withstands temperatures up to 105°C (221°F), with options for custom insulation materials like FEP. Suitable for communication and signal circuits, it offers flexibility with minimum bending radii ranging from 4 to over 8 pairs, and is available in multiple configurations from short to long lengths.
OMEGA 12KX20PP Multipair Extension Cable Specifications:
- Number of Pairs: 12
- Conductor Material: Stranded Tinned Copper
- Insulation Material: Polyvinyl, optional FEP (custom)
- Shielding: Aluminum-backed polyester film with drain wire
- Jacket Thickness: Approximately 1.1 mm (0.045")
- Conductor Diameter: 0.58 mm (15 mm for 12 pairs)
- Temperature Rating: Up to 105°C (221°F)
- Color Coding: Pairs marked 1-1, 2-2, etc.
- Minimum Bending Radius: 6 times overall diameter for 4 pairs, 10 times for 8 pairs, 14 times for over 8 pairs
- Cable Length Minimum: 7.5 meters (25 feet), customizable
- Shielding Type: Electro-static with polyester film and drain wire
- Outer Jacket Material: Polyvinyl
- Rated Voltage: Suitable for industrial signal applications
- Standards: UL approved (assumed based on common practice)
Buy the OMEGA Series Multipair Extension Cable 12KX20PP
Purchase this high-quality multipair extension cable online today and benefit from durable construction, easy identification, and excellent shielding, making it ideal for industrial communication and signal circuits. With a polyvinyl outer jacket, twisted pairs, and optional custom insulation options like FEP, this cable ensures reliable performance in demanding environments. Its temperature rating up to 105°C and flexible bending radii provide excellent reliability. Order now in your preferred length, with fast shipping and excellent customer service, to meet your project requirements efficiently.
Buy Brand PartNumber now and experience unmatched reliability and performance with high-temperature rated, shielded multipair extension cables suitable for industrial signal systems.
Frequently Asked Questions
Where can I buy OMEGA 12KX20PP?
You can click on the BUY or RFQ button to purchase 12KX20PP from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part 12KX20PP?
You can download the 12KX20PP datasheet or visit the OMEGA website for support.
Who is the manufacturer of 12KX20PP?
OMEGA
