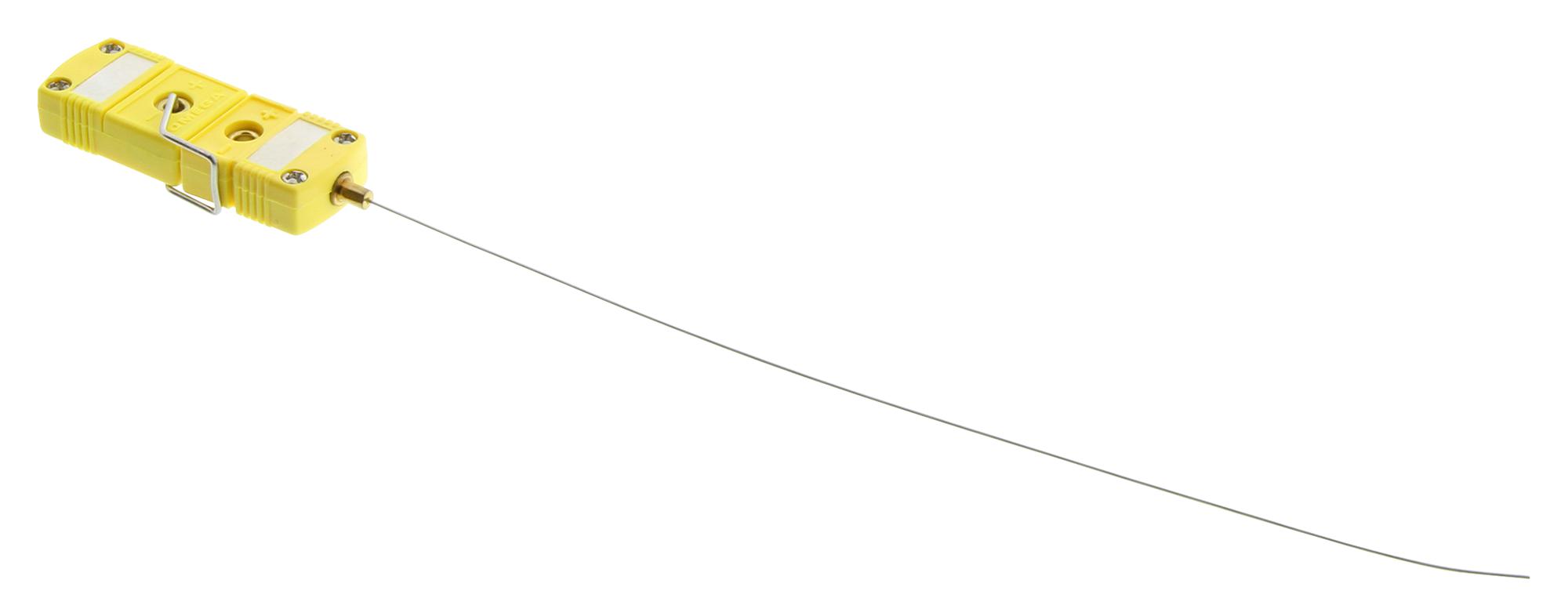

OMEGA SCAXL020G6 Thermocouple Probe
This thermocouple probe features a removable miniature connector with a durable glass-filled nylon body rated for temperatures up to 220°C (425°F). It includes a grounded junction and a color-coded SMP miniature connector for secure and easy connections. Suitable for precise temperature measurements in industrial applications, it offers various sheath materials like Inconel, stainless steel, and Super OMEGACLAD® XL for high-temperature stability. Available in standard lengths of 6 and 12 inches with sheath diameters from 0.010 to 0.125 inches, the probe is designed for reliable and efficient temperature sensing in demanding environments.
OMEGA SCAXL020G6 Thermocouple Probe Specifications:
- Connector Body: Glass-filled nylon rated for 220°C (425°F)
- Junction Type: Grounded
- Sheath Materials: Inconel, 304, 310, 316, 321 stainless steel, Super OMEGACLAD® XL
- Sheath Diameters: 0.010 to 0.125 inches
- Lengths Available: 6 and 12 inches
- Temperature Rating: Up to 220°C (425°F)
- Connector Type: Color-coded SMP miniature
- Body Color: Customizable
- Termination: Removable miniature connector with cable clamp included
- Applicable for Type J, K, N, T thermocouples
- Includes mating connector and cable clamp
Buy the Buy Omega Thermocouple Part Number SCAXL020G6 Online
Purchase the Omega thermocouple probe with removable miniature connector today. Designed for precise temperature sensing up to 220°C, it features a grounded junction, durable sheath options including Inconel and stainless steel, and standard lengths of 6 or 12 inches. The color-coded SMP connector ensures quick and easy connections, making it ideal for industrial processes requiring reliable thermal measurements. Order now to enjoy fast shipping and exceptional quality for demanding environments.
Get Omega SCAXL020G6 today—built for high-temperature industrial accuracy and long-lasting durability.
