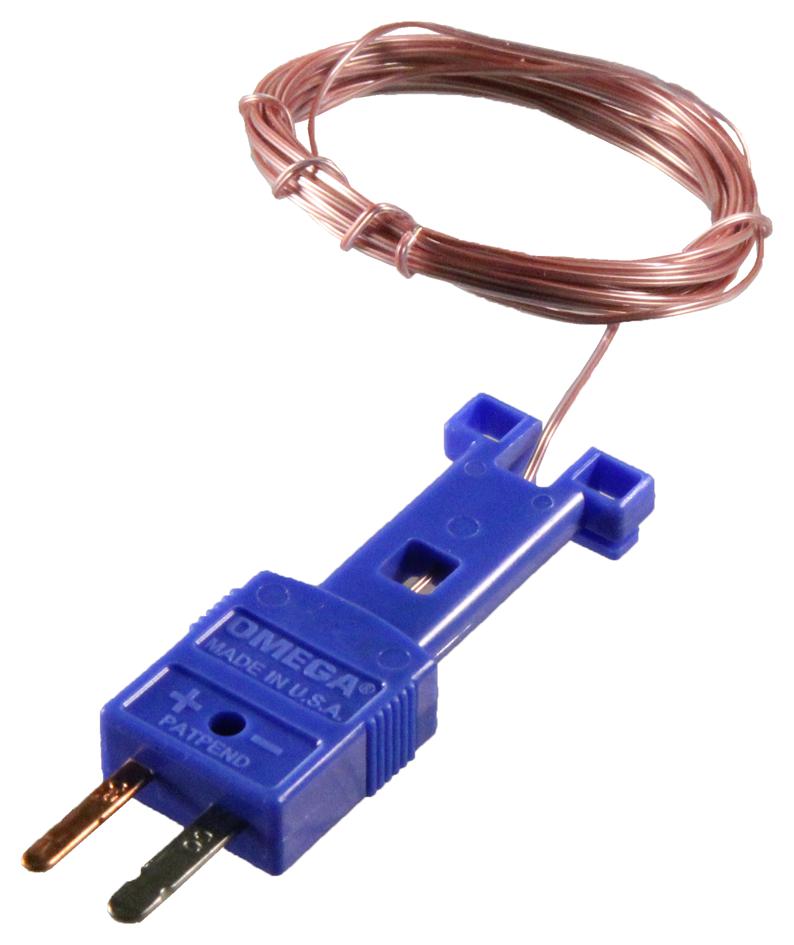

OMEGA 5SCTTK3072 Miniature Thermocouple Spool Caddy
OMEGA's 5SC-TT-K-30-72 miniature spool caddy thermocouple offers a compact and convenient solution for temperature measurement in a wide range of industrial applications. The Type K thermocouple provides accurate readings, while the PFA insulation ensures reliable performance up to 260°C (500°F). The spool caddy design simplifies storage and handling, making it ideal for field use and laboratory environments. Available in both 1m and 2m lengths, this thermocouple is a versatile choice for process monitoring, equipment control, and research.
OMEGA 5SCTTK3072 Miniature Thermocouple Spool Caddy Specifications:
- Insulation: PFA, Glass Braid, Kapton®
- Max Service Temperature (Insulation): 480°C (900°F) for Glass Braid, 260°C (500°F) for PFA, 316°C (600°F) for Kapton®
- Max Service Temperature (Connector Body & Spool Caddy): 220°C (425°F)
- Wire Gauge: 30 AWG, 36 AWG, 40 AWG, 20 AWG, 24 AWG
- Wire Diameter: 0.25mm (0.010in), 0.13mm (0.005in), 0.076mm (0.003in), 0.81mm (0.032in), 0.51mm (0.020in)
- Lengths: 1m (40") and 2m (80")
- ANSI Color Code: Refer to datasheet
- Additional Notes: Add per additional 300 mm (1') per package of 5 for GG or TT wire. For KK wire add per additional 300 mm (1') per package.
Buy the 5SC-TT-K-30-72 OMEGA Miniature Thermocouple Spool Caddy | myMectronic
Purchase the OMEGA 5SC-TT-K-30-72 thermocouple securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy OMEGA 5SCTTK3072?
You can click on the BUY or RFQ button to purchase 5SCTTK3072 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part 5SCTTK3072?
You can download the 5SCTTK3072 datasheet or visit the OMEGA website for support.
Who is the manufacturer of 5SCTTK3072?
OMEGA
